XAPE305 Schneider Electric Industrial Automation Components

XAPE305 on Powermatic Associates
Schneider Electric

Part#:XAPE305

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

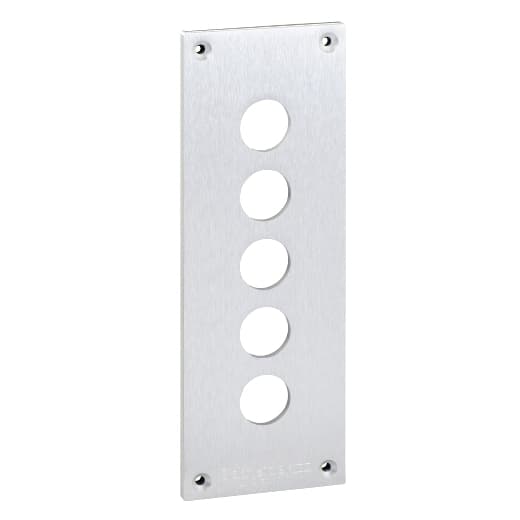

Schneider Electric XAPE305 is a cover designed as part of the XAP sub-range, featuring an enclosure front plate with a fixing screw and accommodations for 5 cut-outs. It is constructed from an anodized aluminium alloy, ensuring durability and resistance to corrosion. The rectangular shape of the XAPE305, combined with its IP65/IP657 degree of protection, makes it suitable for flush mounting applications. The part has mounting holes with a diameter of 22 mm, and its dimensions include a net height of 204 mm and a net width of 72 mm. It is designed to withstand ambient air temperatures for storage ranging from -40 to +70 degrees Celsius, with an operational temperature range from -25 to 70 degrees Celsius.

Product Details

  • Product Front Plate Size
    72 x 204 mm
  • Device Short Name
    XAPE
  • Net Weight
    0.30 lb(US) (0.135 kg)
  • Product Destination
    For Ø 22 mm control and signalling units
  • Number Of Cut-Out
    5 cut-outs
  • Product Or Component Type
    Front plate with fixing screws
  • Range Of Product
    Harmony XAP
  • Device Mounting
    Flush
  • Material
    Anodised aluminium
  • IP Degree Of Protection
    IP65 IEC 60529 IP657 NF C 20-010
  • Resistance To Chemical Agents
    Good resistant to acetone Good resistant to alcohols Good resistant to chloride and fluoride solvents Good resistant to diluted mineral acids Good resistant to oils and petrol Good resistant to organic acids Good resistant to

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XAPE305 on Powermatic Associates is $98.00. Order now.
