2091-1103/002-000 WAGO Industrial Automation Components

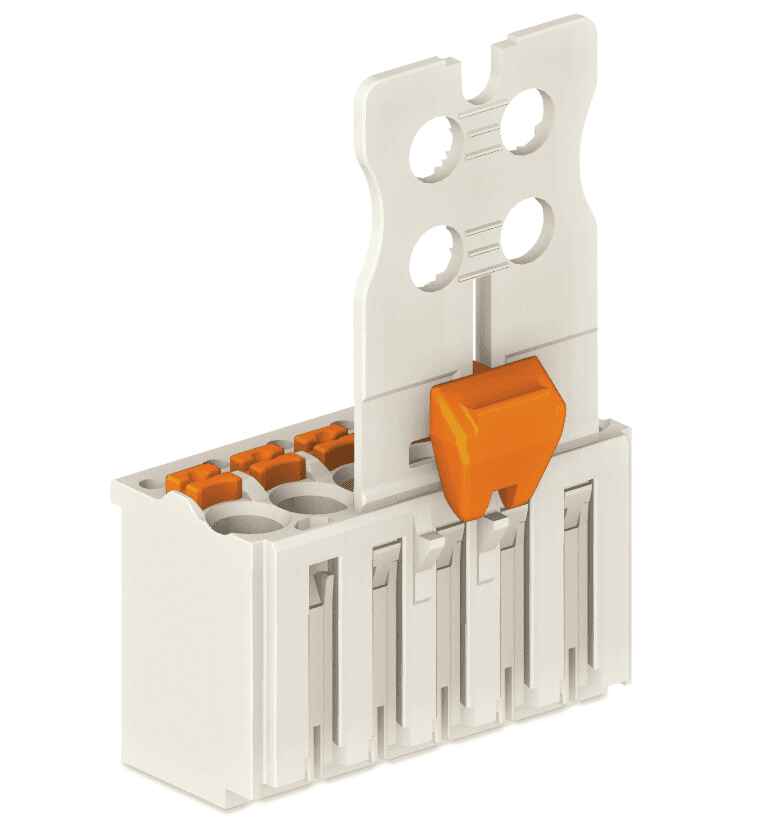

WAGO 2091-1103/002-000 is a picoMAX Pluggable Connection System connector designed for applications as specified by DIN EN 61984, featuring a short circuit breaking rating that necessitates no live connections or disconnections. It adheres to IEC/EN 60664-1 standards with nominal and rated voltages of 160V and 320V under different conditions, and a rated impulse voltage of 2.5kV. The rated current is 10A. UL ratings include a rated voltage of 300V and a rated current of 10A for both Use Groups B and D. This connector has 3 connection points, supports a single connection type across one level, and utilizes Push-in CAGE CLAMP technology with push-button actuation. It accommodates solid and fine-stranded conductors ranging from 0.2 to 1.5mm2 (24 to 14 AWG), with specific capacities for fine-stranded conductors with insulated or uninsulated ferrules. The strip length for connection is 8 to 9mm. Physically, it has a pin spacing of 3.5mm, dimensions of 10.5mm in width, 31mm in height, and 12.4mm in depth, and features variable coding, anti-rotation protection, and a design that includes a gripping plate and sliding connector release. The connector type is a female socket designed for conductor connection without mismating protection, and it allows plugging without loss of pin spacing. The connector is made from light gray Polyphthalamide (PPA GF) with a flammability class of UL94 V0, and the contact material is tin-plated Electrolytic Copper (ECu). It operates within a temperature range of -60 to +100°C and has a processing temperature range of -35 to +60°C. Packaged in boxes of 100 pieces, this product is manufactured in Germany, with a GTIN of 4050821411635 and a customs tariff number of 85366990990. It is RoHS compliant without exemptions.
