2104-1304 WAGO Industrial Automation Components
Part#:2104-1304
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

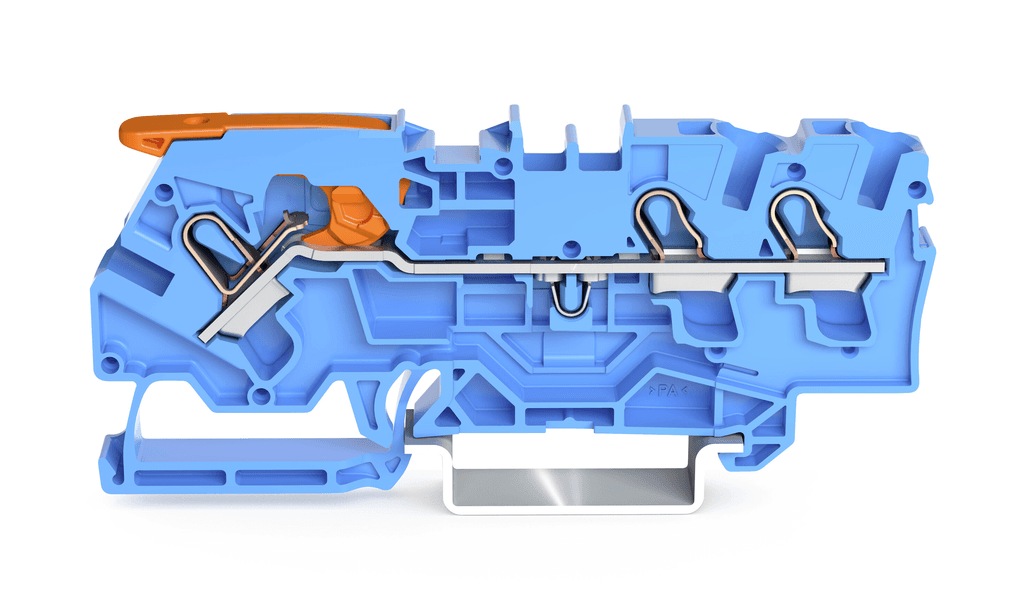

2104-1304 WAGO - 3-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 4 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; blue
Product Details
- Actuator Lever
- Insulation Material Polyamide
- Current 30 amperes, 32 amperes
- Color Blue
- Strip Length 0.51 inches, 13 millimeters
- Voltage 600 volts, 800 volts
- Flammability Class V0
- Conductor Size 10 american wire gauge, 6 millimeters
- Weight 12.046 grams
- Conductor Material Copper
- Operating Temperature 105 degrees celsius
- Height 3.276 inches, 83.2 millimeters
- Mounting Type DIN-35 Rail
- Country of Origin Poland
- Width 0.244 inches, 6.2 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2104-1304 on Powermatic Associates is $3.98. Order now.
About the product
Wago 2104-1304 is a neutral-through terminal block featuring push-in CAGE CLAMP spring connections. It is designed for a rated current of 32A (IEC), 40A (IEC), 30A (UL), 30A (CSA), and 30A (Ex e II). This 1-deck/level terminal block includes a lever, side and center marking slot, and is suitable for Ex I applications with a test port. It has a net height of 8 kV for the rated impulse voltage (Uimp) and a net width for the neutral-through pole (N). The control voltage is for DIN-35 rail (35 x 15 / 35 x 7.5), and it features a blue and orange actuator. The dimensions are H83.2mm x W6.2mm x D32.9mm, accommodating 0.5mm2 to 6mm2 fine stranded or solid conductors and #20AWG to #10AWG fine stranded or solid conductors with a 4mm2 nominal cross-section. The terminal block is made from Polyamide (PA) 66 and includes 3-wires (1 push-in + 2 push-in) (1+2) for normally closed (NC) auxiliary contacts. It operates at a diameter of 800 V (IEC), 600 V (UL), 600 V (CSA), and 550 V (Ex e II) with a network frequency belonging to the TOPJOB S series.
