2202-6306 WAGO Industrial Automation Components
Part#:2202-6306
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

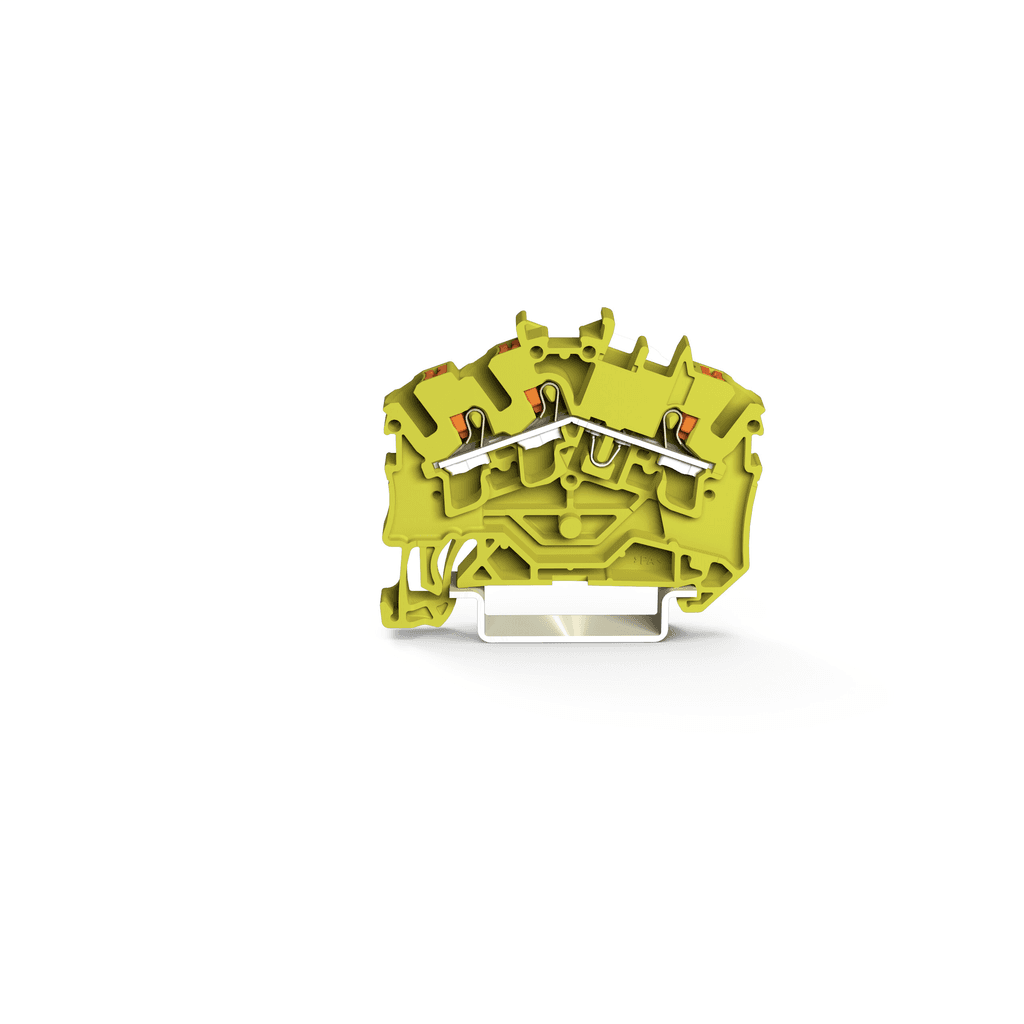

2202-6306 WAGO - 3-conductor through terminal block; with push-button; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; yellow
Product Details
- Color Yellow
- Package Type Box
- Operating Temperature 105 degrees celsius
- Insulation Material Polyamide
- Flammability Class V0
- Height 2.071 inches, 52.6 millimeters
- Conductor Material Copper
- Voltage 600 volts, 800 volts
- Actuator Push-button
- Mounting Type DIN-35 Rail
- Country of Origin Germany
- Weight 6.000 grams
- Conductor Size 12 american wire gauge, 4 millimeters
- Strip Length 0.47 inches, 12 millimeters
- Current 20 amperes, 24 amperes
- Width 0.205 inches, 5.2 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2202-6306 on Powermatic Associates is $2.20. Order now.
About the product
Wago 2202-6306 is a feed-through terminal block designed for efficient wire connection and distribution. It features push-in CAGE CLAMP spring connections for easy wire installation. This terminal block is rated for various currents: 24A (IEC), 32A (IEC), 20A (UL), 20A (CSA), 21A (Ex e II), and 20A (Ex e II with jumper). It is a 1-deck/level design with side and center marking slots, suitable for Ex e II applications. The terminal has a net height of 5.2 mm and a net width accommodating 1 feed-through pole (1P). It is designed for mounting on DIN-35 rail and can handle wires ranging from 0.25mm2 to 4mm2 or #22AWG to #12AWG, with a 2.5mm2 nominal cross-section. The terminal block is made from Polyamide (PA) 66, ensuring compatibility with 3-wires (2 push-in + 1 push-in) configurations. It operates at a rated impulse voltage (Uimp) of 8 kV and dimensions of H52.6mm x W5.2mm x D38.9mm. The terminal is rated for a voltage of 800 V (IEC), 600 V (UL/CSA), and 550 V (Ex e II), and is part of the TOPJOB S series, featuring a yellow and orange actuator for clear identification.
