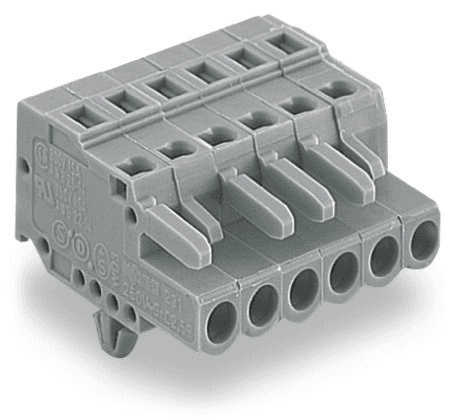

231-104/008-000 WAGO Industrial Automation Components

WAGO 231-104/008-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal and rated voltages of 320V and 630V under different conditions, and a rated impulse voltage of 4kV. The rated current is 16A according to IEC/EN standards. Under UL 1059 and UL 1977, it has rated voltages up to 600V and rated currents up to 15A, with similar ratings under CSA for specific use groups. The connector features 4 connection points, supports a single connection type across one level, and utilizes CAGE CLAMP technology for connection, suitable for solid and fine-stranded conductors of various sizes. It has a 4-pole configuration, with a pin spacing of 5mm, dimensions of 21.5mm in width, 18.8mm in height, and 26.5mm in depth. The housing allows for snap-in foot or panel mounting, includes anti-rotation protection, and is made from Polyamide (PA66) in gray, with a flammability class of UL94 V0. The connector operates within a temperature range of -60 to +85°C and is RoHS compliant without exemptions. It is packaged in boxes of 100 pieces, with a GTIN of 4044918338295 and a customs tariff number of 85366990990, indicating its origin in Germany.
