231-105/026-000 WAGO Industrial Automation Components

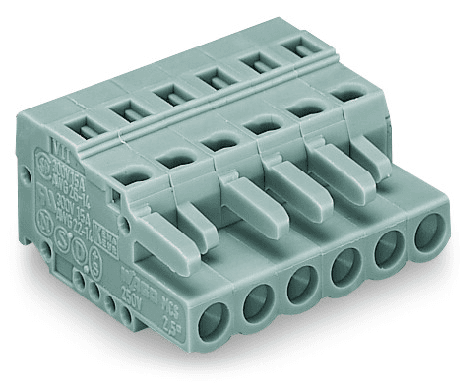

WAGO 231-105/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating that these connectors should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards with nominal voltages of 320V for overvoltage category III/3 and pollution degree 3, and 630V for category II/2, both with a rated impulse voltage of 4kV and a rated current of 16A. UL and CSA approvals are included, with UL ratings of 300V and 600V under different use groups and corresponding currents of 15A and 10A, and CSA ratings mirroring the UL specifications. This part features 5 connection points, supports a single connection type across one level, utilizing CAGE CLAMP technology for secure connections. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific allowances for ferruled conductors. The connector has a 5mm pin spacing, dimensions of 26.5mm in width, 14.3mm in height, and 26.45mm in depth, and is made from Polyamide (PA66) with a flammability class of UL94 V0. It operates within a temperature range of -60 to +85°C, is RoHS compliant, and comes in a box of 100 pieces, manufactured in Germany.
