231-114/026-000 WAGO Industrial Automation Components

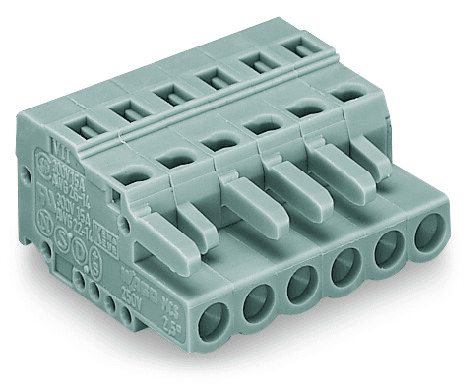

WAGO 231-114/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 16A. UL and CSA approvals include ratings of 300V and 600V with currents ranging from 10A to 15A, depending on the use group. This part features 14 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors of various sizes. The physical dimensions include a pin spacing of 5mm, width of 71.5mm, height of 14.3mm, and depth of 26.45mm. It offers variable coding, anti-rotation protection, and is made from Polyamide (PA66) with a flammability class of UL94 V0. The connector is gray, with a tin-plated copper alloy contact material and a chrome-nickel spring steel clamping spring. It operates within a temperature range of -60 to +85°C and weighs 25.1g. The product is RoHS compliant, packaged in boxes of 25 pieces, and manufactured in Germany with a GTIN of 4044918341783.
