231-302/037-000 WAGO Industrial Automation Components

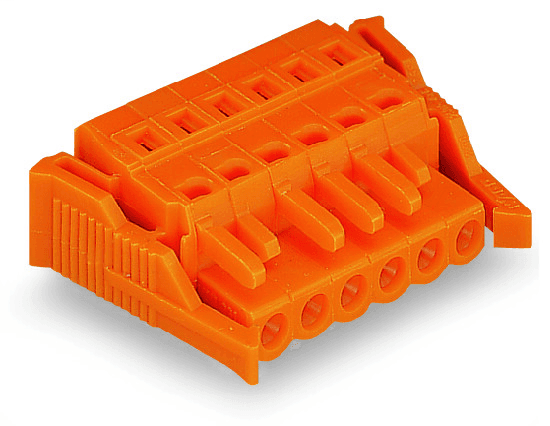

WAGO 231-302/037-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 16A. UL and CSA approvals are included, with ratings varying by use group, including a UL 1977 rating of 600V and 15A. The connector features 2 connection points, supports a single connection type across one level, and utilizes CAGE CLAMP technology for connection, requiring an operating tool for actuation. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific allowances for ferruled conductors. Physical specifications include a pin spacing of 5.08mm, dimensions of 26.76mm in width, 14.3mm in height, and 29.6mm in depth, and it offers variable coding and anti-rotation protection. The female connector/socket is made from orange Polyamide (PA66), with a chrome-nickel spring steel clamping spring, copper alloy contacts, and tin plating. It has a flammability class of UL94 V0, weighs 5.2g, and operates within a temperature range of -60 to +85°C. Packaged in boxes of 100 units, it is RoHS compliant without exemptions, has a GTIN of 4044918345040, and is manufactured in Germany.
