231-309/026-000 WAGO Industrial Automation Components

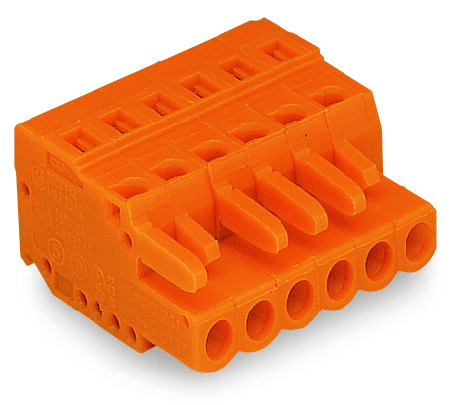

WAGO 231-309/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V for overvoltage category III/3 and pollution degree 3, and 630V for category II/2, both with a rated impulse voltage of 4kV and a rated current of 16A. UL and CSA approvals are included, with ratings under UL 1059 and UL 1977 up to 600V and 15A, and CSA ratings for use groups B and D at 300V and 15A or 10A, respectively. This product features 9 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including those with insulated or uninsulated ferrules. The connector has a pin spacing of 5.08mm, dimensions of 47.22mm in width, 14.3mm in height, and 26.45mm in depth, and includes variable coding and anti-rotation protection. It is designed as a female connector/socket for conductor connection without mismating protection, locking, or plugging without loss of pin spacing. The part is made from orange Polyamide (PA66), with a chrome-nickel spring steel clamping spring, copper alloy contacts, and tin plating. It has a flammability class of UL94 V0, weighs 16.5g, and operates within a temperature range of -60 to +85°C. This product is RoHS compliant, packaged in boxes of 50 pieces, and has a country of origin of DE, with a GTIN of 4044918347686 and a customs tariff number of 85366990990.
