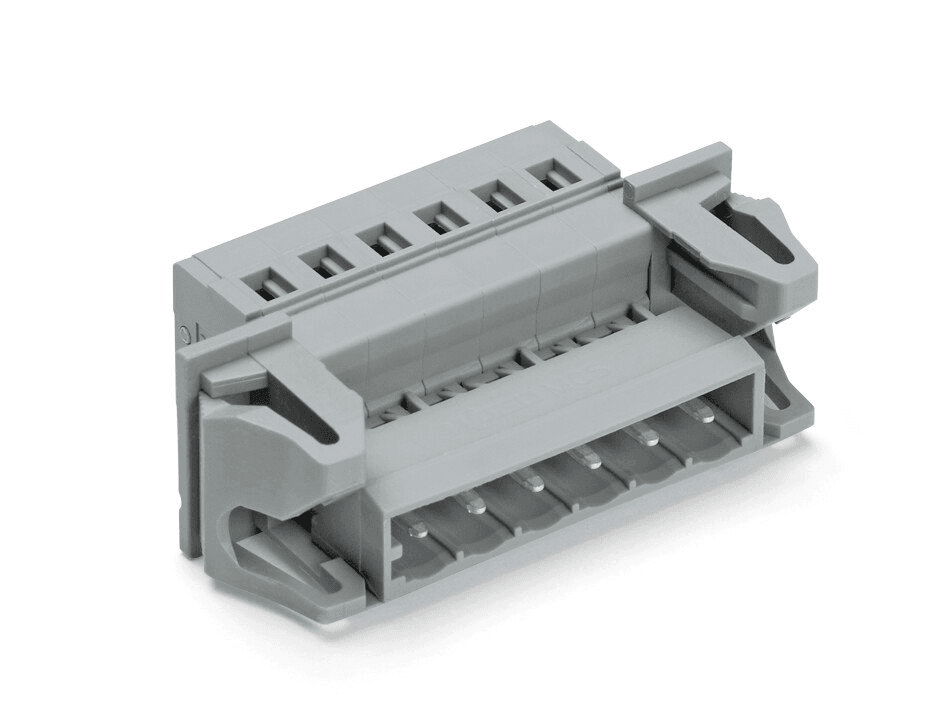

231-604/114-000 WAGO Industrial Automation Components

WAGO 231-604/114-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals are included, with UL ratings of up to 600V and 15A, and CSA ratings of 300V and 15A for Use Group B. It features 4 connection points, a single connection type, and one level, utilizing CAGE CLAMP technology for connection, suitable for solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 or 28 to 12 AWG, with specific strip lengths for optimal connection. The part has a 4-pole configuration, 5mm pin spacing, and dimensions of 41mm in width, 17.5mm in height, and 27.5mm in depth. It offers variable coding, snap-in flange or feed-through mounting, and anti-rotation protection, with a male connector/plug type for conductor connection, without mismating or plugging loss of pin spacing protection. The connector is made from gray Polyamide (PA66), with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel for the clamping spring and tin-plated Electrolytic Copper for contacts. It operates within a temperature range of -60 to +100°C, weighs 8.4g, and is RoHS compliant. The product is packaged in boxes of 50 pieces, manufactured in Germany, with a GTIN of 4050821216025 and a customs tariff number of 85366930000.
