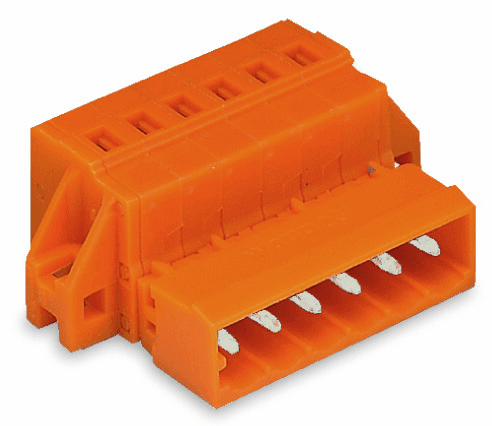

231-640/019-000 WAGO Industrial Automation Components

WAGO 231-640/019-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals are noted, with UL ratings including 300V and 600V for different use groups and a rated current up to 15A. It features 10 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors of various sizes. The connector has a 10-pole number, 5.08mm pin spacing, and dimensions of 65.6mm in width, 14.3mm in height, and 27.5mm in depth. It offers variable coding, multiple mounting options including mounting flange and panel mounting, and is made from Polyamide (PA66) with a flammability class of UL94 V0. The contact material is Electrolytic Copper with tin plating. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 25 pieces, with the country of origin being Germany (DE), and it has a GTIN of 4044918260596.
