233-507 WAGO Industrial Automation Components

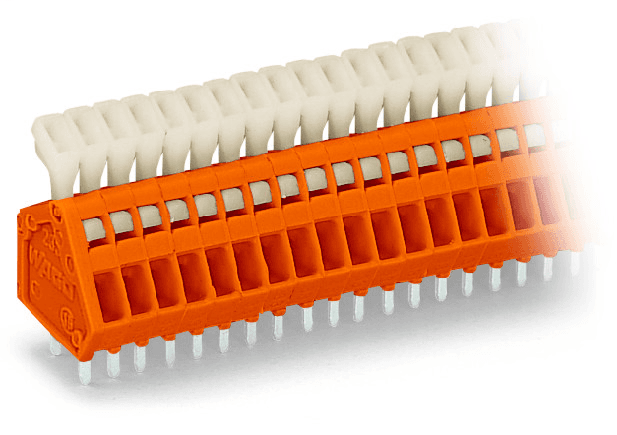

WAGO 233-507 is a printed circuit connector with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 63V (III/3), 160V (III/2), and 320V (II/2), with a rated impulse voltage of 2.5kV for all categories and a rated surge voltage of 2.5kV for category II/2. The connector has a rated current of 6A according to IEC/EN standards, and under UL 1059 and CSA approvals, it has a rated voltage of 150V and a rated current of 4A for Use Group B. It offers 7 connection points, with the same number of potentials and a single connection type across one level. The connection technology is CAGE CLAMP with push-button actuation, accommodating solid and fine-stranded conductors ranging from 0.08 to 0.5mm2 (28 to 20 AWG), including fine-stranded conductors with both insulated and uninsulated ferrules of 0.25mm2. The connector has a strip length of 5 to 6mm (0.2 to 0.24 inches) and a conductor connection direction to PCB of 30 degrees. It features a pin spacing of 2.54mm (0.1 inch), dimensions of 20.08mm in width, 19.5mm in height, 15.5mm height from the surface, and 13.9mm in depth, with solder pin length of 4mm and dimensions of 0.5 x 0.75mm. The drilled hole diameter with tolerance is 1.1 (+0.1)mm. The PCB contact is THT with an in-line solder pin arrangement and two solder pins per potential. The connector is orange, made from Polyamide (PA66) with a flammability class of V0, and uses Chrome-Nickel spring steel (CrNi) for the clamping spring and Electrolytic Copper (ECu) with tin plating for contacts. It has a fire load of 0.067MJ and weighs 2.9g. It operates within a temperature range of -60 to +105°C. The product belongs to Group 4 (Printed Circuit Connectors), with eClass 10.0 and 9.0 classification of 27-44-04-01, and ETIM 8.0 and 7.0 classification of EC002643. It is packaged in boxes of 240 pieces (60 pieces per SPU), originates from CH, has a GTIN of 4045454050344, a customs tariff number of 85369010000, and complies with RoHS without exemptions.
