260-351 WAGO Industrial Automation Components
Part#:260-351
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

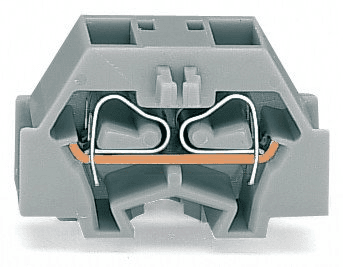

260-351 WAGO - Space-saving, 4-conductor end terminal block; without push-buttons; without protruding snap-in mounting foot; 1-pole; for terminal strips with snap-in mounting feet; 1.5 mm²; CAGE CLAMP®; 1,50 mm²; gray
Product Details
- Weight 2.522000663 g
- Country Of Origin Switzerland
- HTS Code 85369010000
- Depth 0.988 inches, 25.1 millimeters
- Package Type Box
- Flammability Class V0
- Width 0.315 inches, 8 millimeters
- Current 18 amperes
- Voltage 400 volts
- Color Gray
- Operating Temperature 105 degrees celsius
- Actuator Operating Tool
- Insulation Material Polyamide
- Conductor Material Copper
- Weight 2.385 grams
- Conductor Size 1.5 millimeters, 16 american wire gauge
- Mounting Type Snap-in Foot
- Strip Length 0.35 inches, 9 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 260-351 on Powermatic Associates is $1.04. Order now.
About the product
Wago 260-351 is a terminal designed for space-saving feed-through/end terminal block applications. It features CAGE-CLAMP spring connections for secure and maintenance-free wiring. This terminal is rated for an 18A current according to IEC standards and is designed as a 1-deck/level with side/lateral wire entry. It has a net height of 6 kV for rated impulse voltage (Uimp) and a net width accommodating 1 feed-through pole (1P). The terminal can be mounted on DIN rails or surfaces via an accessory snap-in foot. It is colored gray and has dimensions of H17.1mm x W8mm x D25.1mm, making it suitable for 0.08mm2 to 1.5mm2 fine stranded or solid conductors and #28AWG to #16AWG fine stranded or solid conductors. The terminal block is made from Polyamide (PA) 66, supports a 4-wire connection (2 clamps + 2 clamps) for 2+2 wiring, and operates at a control voltage (AC) with a diameter rated for (IEC) 400 V.
