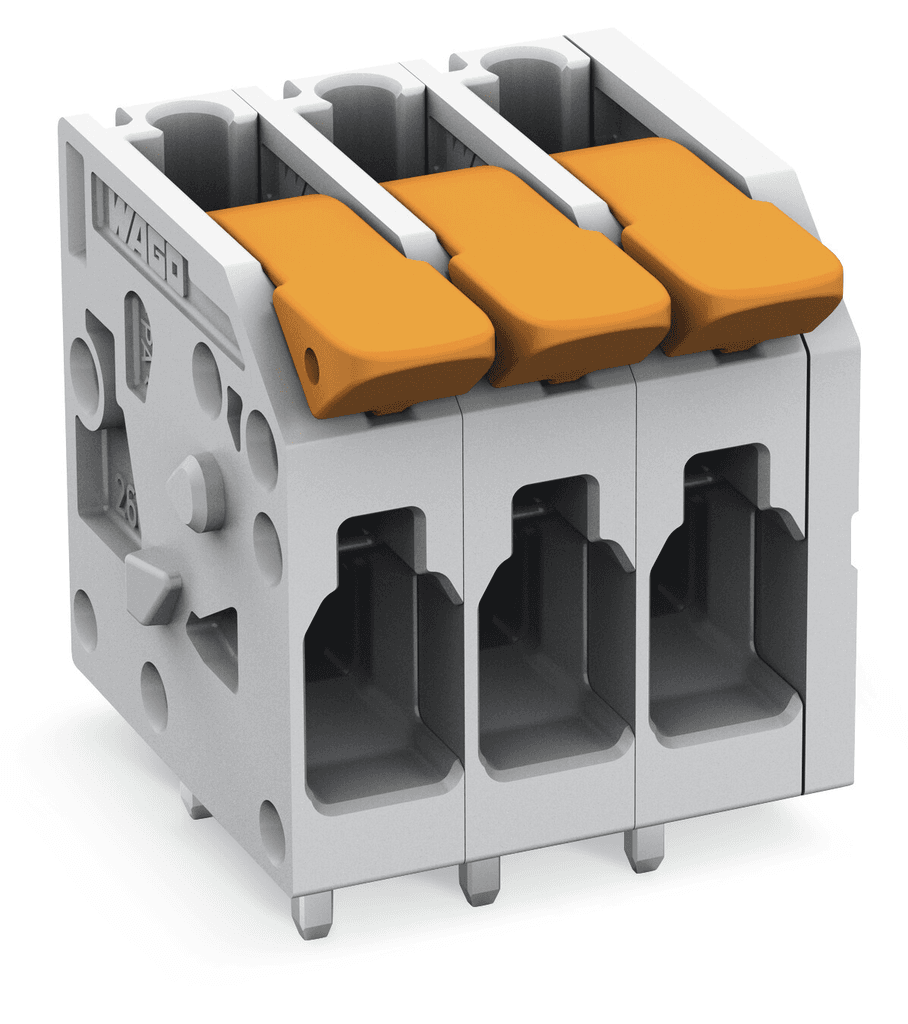

2604-1103 WAGO Industrial Automation Components

WAGO 2604-1103 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 320V (III/3), 400V (III/2), and 630V (II/2), with rated impulse voltages of 4kV for all categories and a rated current of 32A. The part is UL 1059 approved, with rated voltages of 300V and rated currents of 20A for Use Group B and 10A for Use Group D under UL standards. CSA approvals include rated voltages of 300V and rated currents of 20A for Use Group B and 5A for Use Group D. It has 3 connection points, a single connection type with push-in CAGE CLAMP technology, lever actuation, and accommodates solid and fine-stranded conductors ranging from 0.2 to 4mm2 / 24 to 12 AWG, including various ferrule types. The strip length for connection is 9 to 11mm / 0.35 to 0.43 inches, with a conductor connection direction to PCB of 0° and a pole number of 3. Physical specifications include a pin spacing of 5mm / 0.197 inches, dimensions of 17.4mm width, 20.7mm height, 19.2mm depth, and a solder pin length of 4mm. The material is gray Polyamide (PA66) with a flammability class of UL94 V0, and the actuator color is orange. It operates within a temperature range of -60 to +105°C and weighs 4.7g. The product is RoHS compliant, packaged in boxes of 130 pieces, and has a GTIN of 4055143564304.
