2787-2146/000-030 WAGO Industrial Automation Components

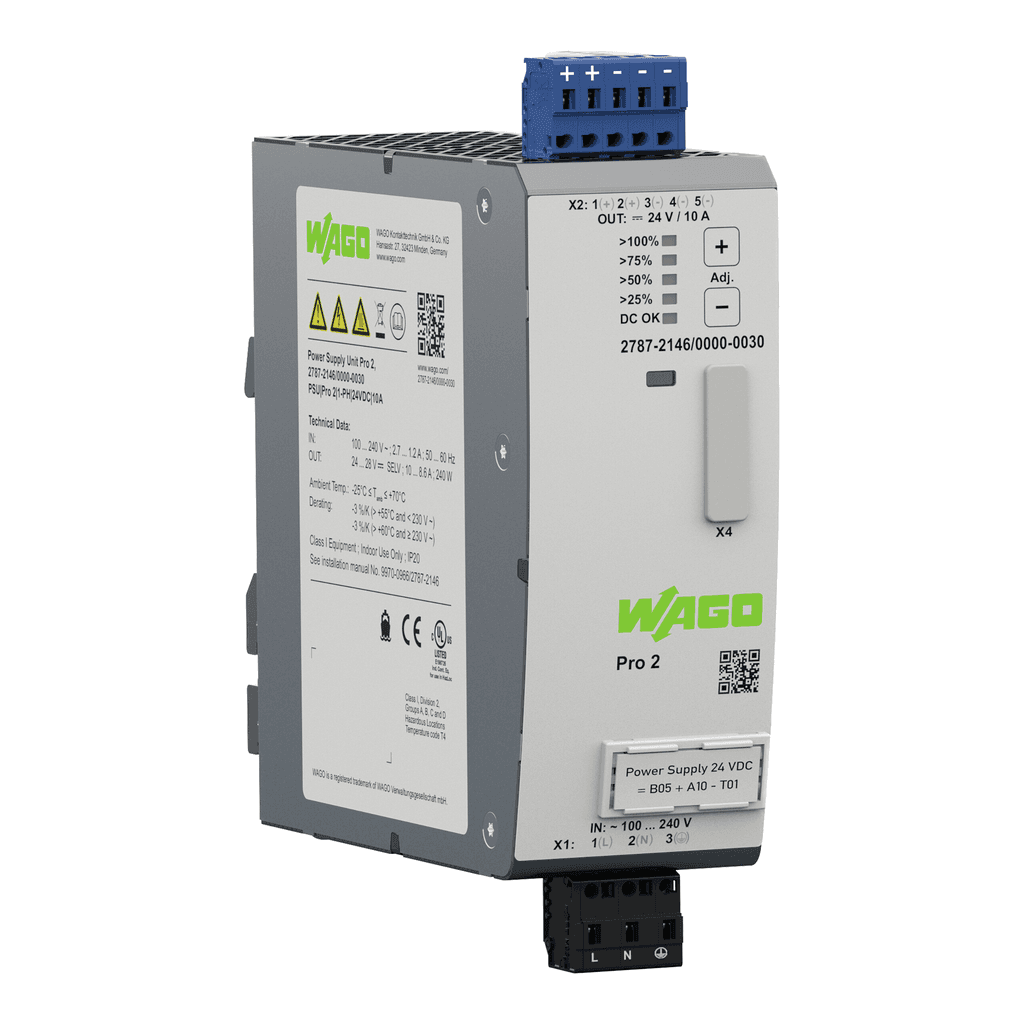

Wago 2787-2146/000-030 is a Pro2 switch-mode AC/DC power supply unit (SMPS PSU) featuring TopBoost, PowerBoost, and the capability for both series and parallel operation. It includes LED status indication for DC OK, supply voltage load, warning, and error states, along with digital signal input and output (DI/DO). The unit operates with a rated current of 130-240Vdc and offers CAGE-CLAMP spring connections. It supports a rated voltage (DC) of 10A and 15A (5s) for PowerBoost, with up to 600% TopBoost. The part has communication capability via an optional module, a rated power output of 240W, and operates within an ambient air temperature range of 90-264Vac for operation and -25°C to +70°C for storage. It features IP20 protection, a T 6.3A / 250Vac internal fuse for safety, including short-circuit and open circuit protection, and a 1.1 x Io nom (typ.) current limitation function. The dimensions are H130mm x W50mm x D130mm, designed for DIN-35 rail mounting. It operates on a single-phase AC (1AC) or DC supply voltage of 47-63 Hz, with an electrical durability of 24Vdc (SELV) and 24-28Vdc adjustable. The frame current rating is 25ms (230Vac input), with a secondary current of 0.953 (230Vac) and a short circuit current breaking capacity (Icn) of ≤ 70mVpp (output voltage).
