279-501 WAGO Industrial Automation Components

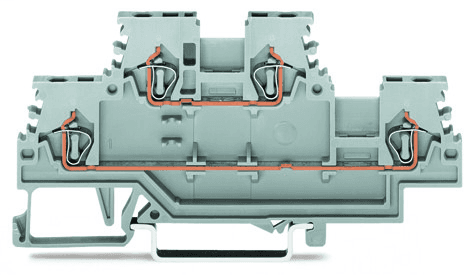

Wago 279-501 is a feed-through terminal block designed for efficient wire connection and distribution. It features CAGE-CLAMP spring connections for secure and maintenance-free wire termination. This terminal block is rated for currents up to 18A according to IEC standards, and 10A according to both UL and CSA standards. It is a double-deck design, allowing for compact and organized wiring in control cabinets. The terminal block is compatible with DIN-35 rail mounting, ensuring easy installation. It accommodates wire sizes ranging from 0.08mm2 to 1.5mm2 or #28AWG to #16AWG, both fine stranded and solid conductors. The terminal block is constructed from Polyamide (PA) 66, ensuring durability and resistance to environmental factors. It has a net height of 6 kV for impulse voltage, a net width accommodating 2 feed-through poles, and dimensions of H85mm x W4mm x D39mm. The terminal block operates at a rated impulse voltage (Uimp) of 4 mm and a control voltage for AC systems, with a color coding of gray. It features 4-wire connections (2 clamps + 2 clamps) for comprehensive wiring solutions and is designed to withstand voltages up to 500V according to IEC standards and 300V according to UL standards.
