279-626 WAGO Industrial Automation Components
Part#:279-626
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

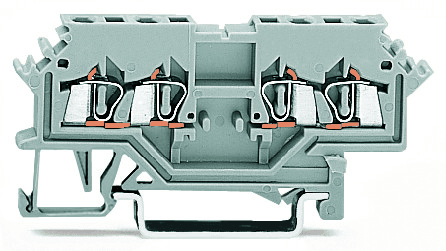

279-626 WAGO - Double potential terminal block; 1.5 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 1,50 mm²; gray
Product Details
- Weight 5.746001511 g
- Country Of Origin Germany
- HTS Code 85369010000
- Mounting Type DIN-35 Rail
- Insulation Material Polyamide
- Height 2.677 inches, 68 millimeters
- Actuator Operating Tool
- Operating Temperature 105 degrees celsius
- Conductor Size 1.5 millimeters, 16 american wire gauge
- Strip Length 0.35 inches, 9 millimeters
- Conductor Material Copper
- Package Type Box
- Flammability Class V0
- Color Gray
- Voltage 800 volts
- Current 18 amperes
- Width 0.157 inches, 4 millimeters
- Country of Origin Germany
- Weight 5.746 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 279-626 on Powermatic Associates is $3.72. Order now.
About the product
Wago 279-626 is a double potential feed-through/thru terminal block designed for efficient connectivity. It features CAGE-CLAMP spring connections for secure and maintenance-free wire connection. This terminal block is rated for currents up to 18A according to IEC standards, and 10A as per UL and CSA certifications. It is a 1-deck/level terminal with lateral marking slots, designed to fit on DIN-35 rail systems (35 x 15 / 35 x 7.5). The terminal block has a net height of 8 kV for impulse voltage, with a compact design measuring 68mm in height, 4mm in width, and 27mm in depth. It accommodates 2 feed-through poles (2P) and is suitable for wire sizes ranging from 0.08mm2 to 1.5mm2 or #28AWG to #16AWG, both fine stranded or solid conductors. The terminal block is made from Polyamide (PA) 66, ensuring durability and resistance to environmental factors. It operates at a rated voltage of 800V according to IEC standards, and 600V as per UL and CSA. The design includes 4-wires (2 clamps + 2 clamps) configuration for versatile connectivity options.
