284-687 WAGO Industrial Automation Components
Part#:284-687
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

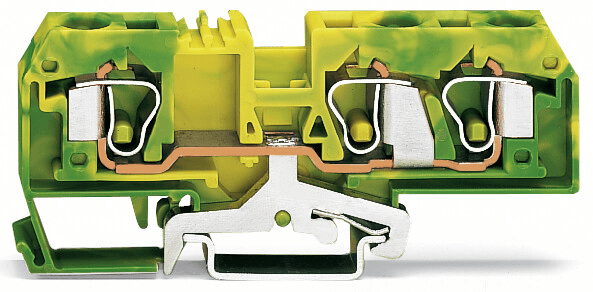

284-687 WAGO - 3-conductor ground terminal block; 10 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 10,00 mm²; green-yellow
Product Details
- Weight 40.04401053 g
- Country Of Origin Germany
- HTS Code 85369010000
- Conductor Material Copper
- Weight 40.044 grams
- Country of Origin Germany
- Conductor Size 10 millimeters, 8 american wire gauge
- Width 0.394 inches, 10 millimeters
- Height 3.839 inches, 97.5 millimeters
- Actuator Operating Tool
- Strip Length 0.51 inches, 13 millimeters
- Flammability Class V0
- Insulation Material Polyamide
- Color Green, Yellow
- Package Type Box
- Operating Temperature 105 degrees celsius
- Mounting Type DIN-35 Rail
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 284-687 on Powermatic Associates is $15.61. Order now.
About the product
Wago 284-687 is a ground/earthing terminal block designed for secure connections using CAGE-CLAMP spring connections. This 1-deck/level terminal features a center marking slot and is compatible with DIN-35 rail mounting (35 x 15 / 35 x 7.5). It is rated for an impulse voltage (Uimp) of 10 mm and has a net width for 1 grounding / protective-earth (1PE) connection. The terminal is designed to accommodate 0.2mm^2 to 10mm^2 fine stranded or solid conductors, equivalent to #24AWG to #8AWG. Its dimensions are H97.5mm x W10mm x D35mm, and it is constructed from Polyamide (PA) 66. The terminal block supports 3-wires (1 clamp + 2 clamps) (1+2) for normally closed (NC) auxiliary contacts and is identifiable by its green-yellow color, indicating its function as a ground/earthing terminal.
