285-950 WAGO Industrial Automation Components
Part#:285-950
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

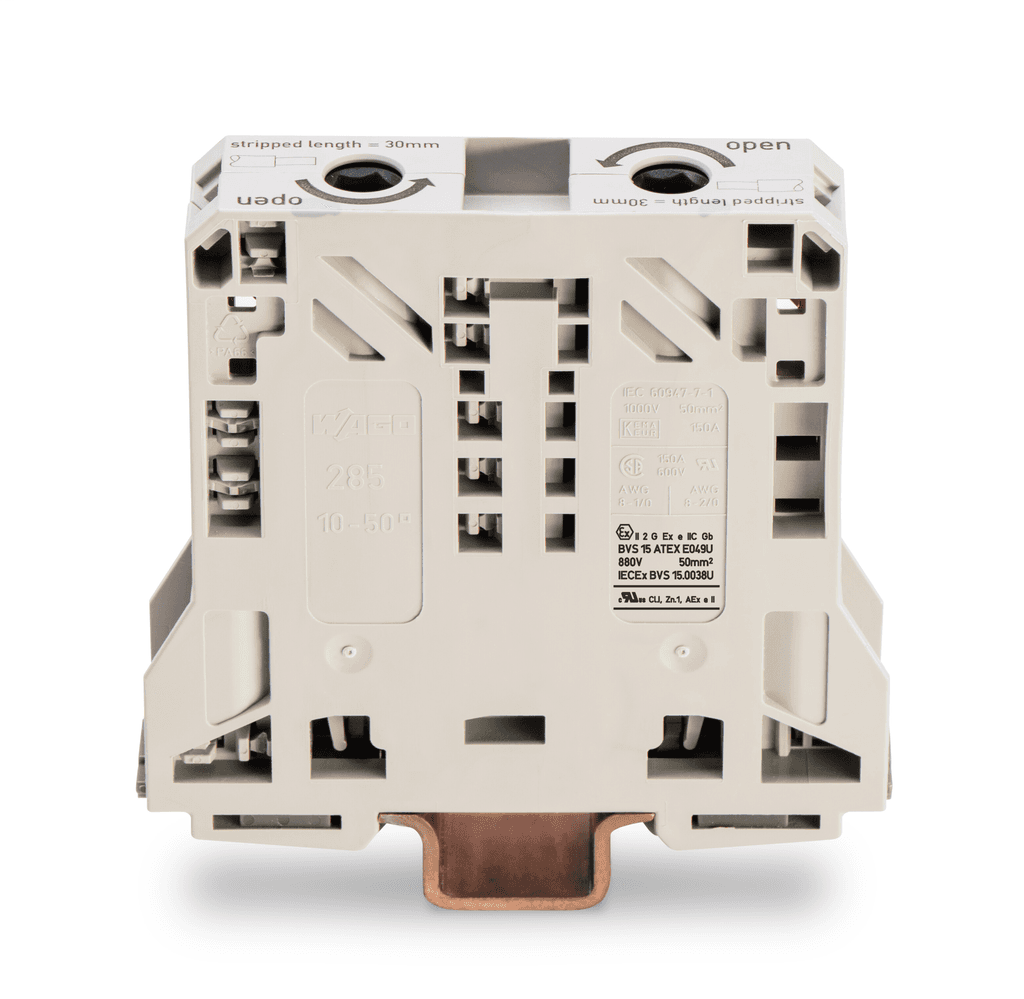

285-950 WAGO - POWER CAGE CLAMP feedthrough terminal block; suitable for Ex e II applications; DIN 35 x 15 rail mount; 2-conductor; 2/0 AWG stranded, 1/0 AWG solid; 20 mm wide; light gray
Product Details
- Weight 159.2300419 g
- Country Of Origin Poland
- HTS Code 85369010000
- Country of Origin Poland
- Weight 158.770 grams
- Mounting Type DIN-rail 35 X 15
- Height 3.701 inches, 94 millimeters
- Color Gray
- Package Type Box
- Conductor Material Copper
- Voltage 600 volts
- Current 150 amperes
- Actuator Operating Tool
- Operating Temperature 105 degrees celsius
- Insulation Material Polyamide
- Conductor Size 1/0 american wire gauge, 50 millimeters
- Strip Length 1.18 inches, 30 millimeters
- Flammability Class V0
- Width 0.787 inches, 20 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 285-950 on Powermatic Associates is $28.91. Order now.
About the product
Wago 285-950 is a feed-through terminal block designed with POWER CAGE-CLAMP screw connections. It supports a rated current of 134A for Ex e II applications, 150A for UL, and 150A for CSA. This 1-deck terminal features lateral marking slots, side wire entry, and is suitable for Ex e II applications. It has a rated impulse voltage (Uimp) of 20 mm and is designed for mounting on a DIN-35 rail (35 x 15). The terminal is compatible with 10mm2 to 70mm2 fine stranded conductors, 10mm2 to 50mm2 solid conductors, #8AWG to #2/0AWG fine stranded conductors, and #8AWG to #1/0AWG solid conductors, with a 50mm2 nominal cross-section. The housing is made of Polyamide (PA) 66, and it features 2-wires (1 clamp + 1 clamp) for normally closed (NC) auxiliary contacts. The terminal block has dimensions of H94mm x W20mm x D87mm and operates at a voltage of 600 V for UL and CSA, and 880 V for Ex e II applications.
