733-108 WAGO Industrial Automation Components

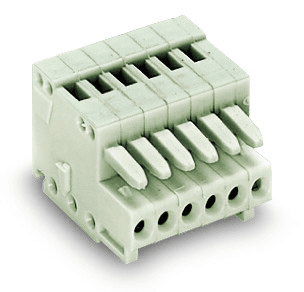

WAGO 733-108 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 100V (III/3), 160V (III/2), and 320V (II/2), rated impulse voltages of 2.5kV across these categories, and a rated current of 6A. UL and CSA approvals are noted, with a rated voltage of 150V and rated current of 4A for both standards under Use Group B. The connector features 8 connection points and potentials, with a single connection type and level utilizing CAGE CLAMP technology. It supports solid and fine-stranded conductors ranging from 0.08 to 0.5mm2 (28 to 20 AWG), with specific strip lengths of 5 to 6mm. The physical dimensions include a pin spacing of 2.5mm, width of 22.1mm, height of 11.8mm, and depth of 17.1mm. It offers variable coding, anti-rotation protection, and is designed as a female connector/socket for conductor connection without locking features. The light gray connector is made from Polyamide (PA66) with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel for the clamping spring and a copper alloy with tin plating for contacts. It operates within a temperature range of -60 to +100°C, has a fire load of 0.062MJ, and weighs 3.5g. Packaged in boxes of 100 pieces, it is RoHS compliant without exemptions, and its country of origin is Germany.
