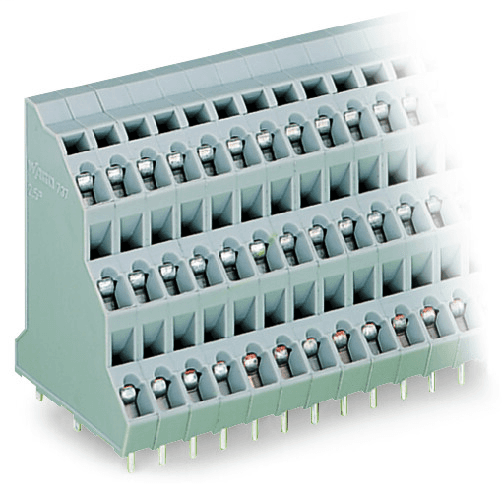

737-112 WAGO Industrial Automation Components

WAGO 737-112 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN, including nominal voltages of 250V (III/3), 320V (III/2), and 630V (II/2), with rated impulse and surge voltages of 4kV across various overvoltage categories and pollution degrees. It has a rated current of 21A. UL and CSA approvals are provided, with rated voltages of 300V and rated currents of 10A for both UL Use Groups B and D, and similarly for CSA. The part features 36 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including options for ferrules. The physical dimensions include a pin spacing of 5mm, width of 61mm, height of 44mm, depth of 31mm, and solder pin length of 4mm. It is designed for THT PCB contact with one solder pin per potential. The part is made from Polyamide (PA66) in gray, with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel and Electrolytic Copper with tin plating for the clamping spring and contact materials, respectively. It operates within a temperature range of -60 to +105°C, weighs 50.2g, and is RoHS compliant. The product is packaged in boxes of 16 pieces, has a GTIN of 4045454021924, and is manufactured in Poland.
