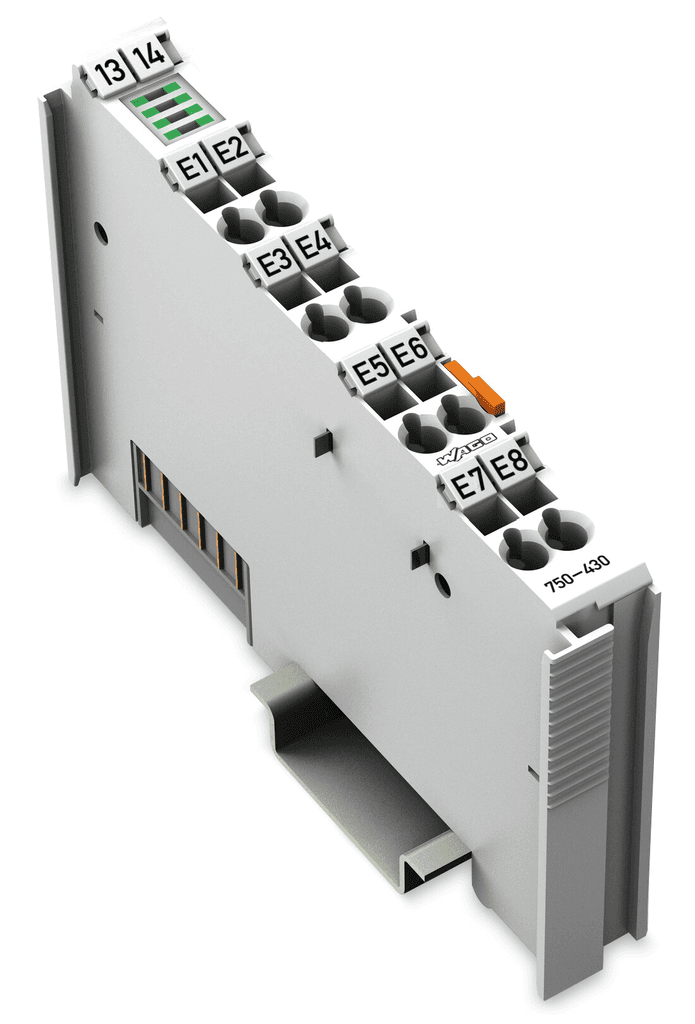

750-430 WAGO Industrial Automation Components

Wago 750-430 is an I/O unit functioning as a standard DC digital input slice module. It operates with a supply voltage of 5Vdc provided by the system and an adjustable supply voltage of 18-32.5Vdc to field sensing devices. This unit features push-in spring cage-clamp connections and does not require an AC supply voltage. It is designed to operate within an ambient air temperature range of -40°C to +55°C and can be stored in temperatures ranging from -40°C to +85°C. The 750-430 uses an IP20 communication protocol and has a rated insulation voltage (Ui) of 12mm. Its dimensions are H100mm x W12mm x D67.8mm, and it is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing. This module supports 8 x digital inputs (24Vdc transistor) with high-side switching and features a 1-wire output voltage (DC) with a 3ms filter. Digital inputs voltage ranges from -3 to +5Vdc (OFF) and 15-30Vdc (ON). It has a trip current rating of 17mA (5Vdc, system supply) and is designed for mounting on a DIN-35 rail. The 750-430 offers vibration resistance according to EN 60068-2-6 (4g) and shock resistance according to EN 60068-2-27 (15g), with a climatic resistance of 95% relative humidity (RH, non-condensing).
