750-552/000-200 WAGO Industrial Automation Components
Part#:750-552/000-200
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

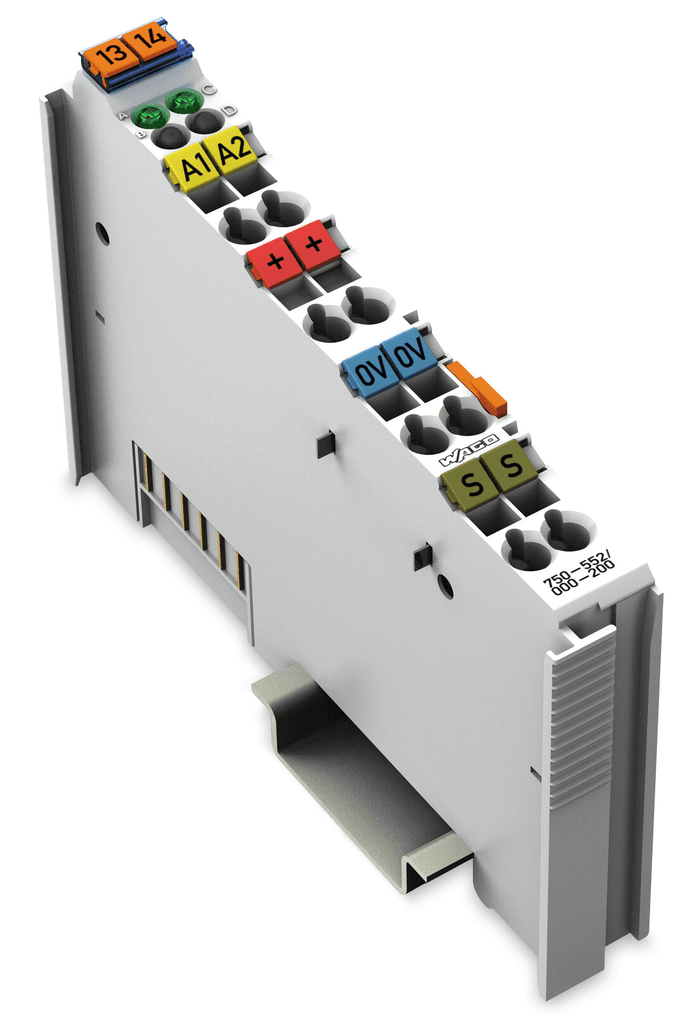

750-552/000-200 WAGO - 2-channel analog output; 0 … 20 mA; S5 PLC data format
Product Details
- Weight 50.00001315 g
- Country Of Origin Germany
- HTS Code 85389099990
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Package Type Box
- Depth 2.748 inches, 69.8 millimeters
- Housing Material Polyamide 6.6, Polycarbonate
- Strip Length 0.35 inches, 9 millimeters
- Country of Origin Germany
- Color Gray
- Width 0.472 inches, 12 millimeters
- Weight 50.000 grams
- Height 100 millimeters, 3.937 inches
- Mounting Type DIN-35 Rail
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 750-552/000-200 on Powermatic Associates is $430.00. Order now.
About the product
Wago 750-552/000-200 is an I/O unit functioning as a standard analog output slice module. It operates with a supply voltage of 5Vdc provided by the system and an adjustable supply of 18-32.5Vdc to field sensing devices. This unit features push-in spring cage-clamp connections and is designed with a customized data format for S5 control. It does not use AC supply voltage and is designed to operate within an ambient air temperature range of 0°C to +55°C, with a storage temperature range of -25°C to +85°C. The degree of protection is IP20, and it has a rated insulation voltage of 12 mm. The unit's dimensions are H100mm x W12mm x D69.8mm, and it is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing. It offers 2 analog outputs with a 0-20mA range, 12-bits resolution, and a 2ms conversion time. The maximum continuous operating voltage is for a 2-wire connection system. It has a vibration resistance according to EN 60068-2-6 of 4g and a shock resistance according to EN 60068-2-27 of 15g. The operating current is 70mA at 5Vdc. The module has a measuring error of ±0.1% and a temperature error of ±0.01%. It can operate in up to 95% relative humidity (RH), non-condensing.
