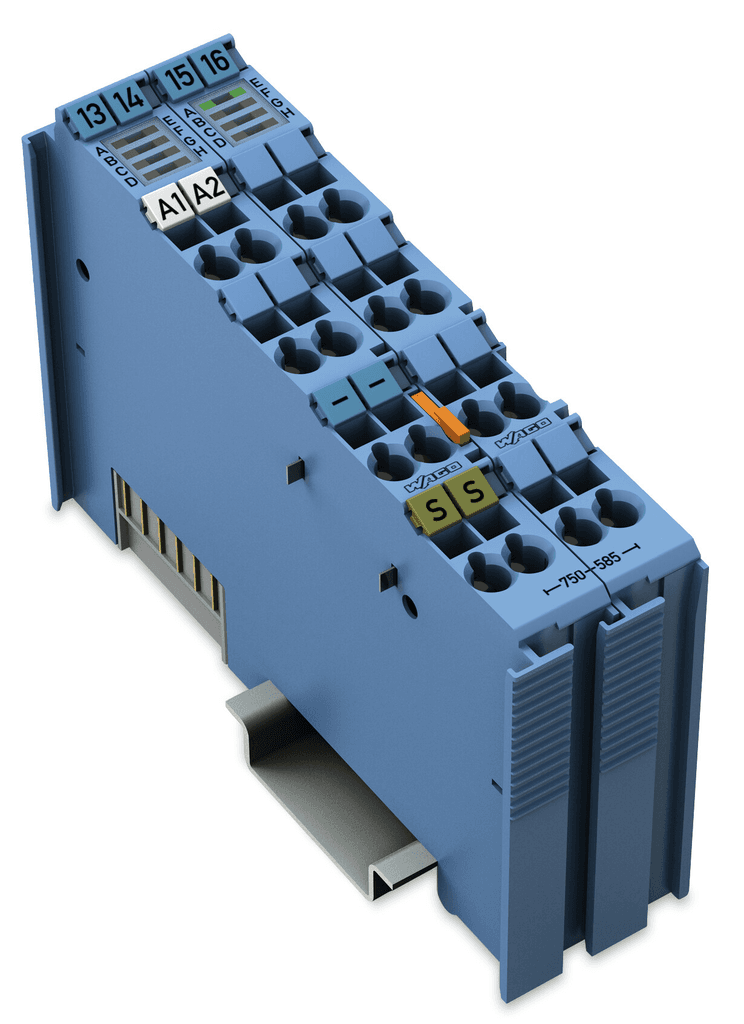

750-585 WAGO Industrial Automation Components

Wago 750-585 is an I/O unit designed as an intrinsically-safe analog output slice module. It operates with a supply voltage of 5Vdc provided by the system and a fixed 24Vdc supply to field sensing devices. This unit features push-in spring cage-clamp connections and is designed for operation in ambient air temperatures ranging from -25°C to +55°C, with storage temperatures from -25°C to +85°C. It supports a control voltage labeled as "C" and utilizes an IP20 communication protocol. The rated insulation voltage is 24 mm, and it is designed for mounting on a DIN-35 rail. The unit measures H100mm x W24mm x D67.8mm and is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing. It offers 2 analog outputs with a 0-20mA range, 12-bits resolution, and a 2ms conversion time for each channel. The maximum continuous operating voltage for the 2-wire connection is specified, and it features vibration resistance according to EN 60068-2-6 at 4g and shock resistance according to EN 60068-2-27 at 15g. The thermal resistance is 0.9 W, and it operates with a current of 21mA at 5Vdc from the system supply and 19mA from the field supply with no external load. The unit's accuracy includes a measuring error of ±0.2% and a temperature error of ±0.01%. It is designed to withstand up to 95% relative humidity (RH), non-condensing.
