769-502 WAGO Industrial Automation Components
Part#:769-502
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

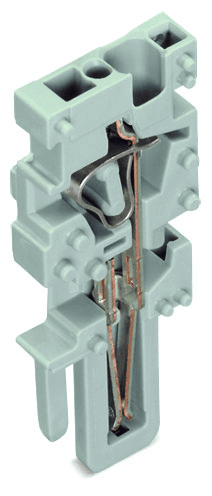

769-502 WAGO - Center module for 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 1-pole; coding finger; 4,00 mm²; gray
Product Details
- Weight 3.146000827 g
- Country Of Origin Germany
- HTS Code 85366990990
- Actuator Operating Tool
- Insulation Material Polyamide
- Height 1.78 inches, 45.2 millimeters
- Conductor Material Copper
- Strip Length 0.35 inches, 9 millimeters
- Country of Origin Germany
- Weight 3.146 grams
- Flammability Class V0
- Conductor Size 12 american wire gauge, 4 millimeters
- Operating Temperature 105 degrees celsius
- Depth 0.72 inches, 18.3 millimeters
- Connection Type For Conductor
- Voltage 500 volts
- Color Gray
- Package Type Bag
- Current 32 amperes
- Width 0.197 inches, 5 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 769-502 on Powermatic Associates is $1.63. Order now.
About the product
Wago 769-502 is a plug designed as a center module for 1-conductor female connectors, featuring CAGE-CLAMP spring connections for secure and maintenance-free wiring. It supports a rated current of 32A and is compatible with a design that includes a pin spacing of 5mm. The plug is rated for an impulse voltage of 6 kV and is designed to accommodate conductor sizes ranging from 0.08mm2 to 4mm2, or #28AWG to #12AWG, with a nominal cross-section of 4mm2. It is constructed from Polyamide (PA) 66 and utilizes halogen-free materials for enhanced safety and durability. The plug, part of the X-COM series, is designed for a control voltage (AC) application with a plug-in connection type, and it has dimensions tailored for a net width of 1-pole (1P) and a power consumption characterized by its gray color. The rated voltage is specified as 500 V, indicating its suitability for various industrial applications.
