769-615/006-000 WAGO Industrial Automation Components
Part#:769-615/006-000
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

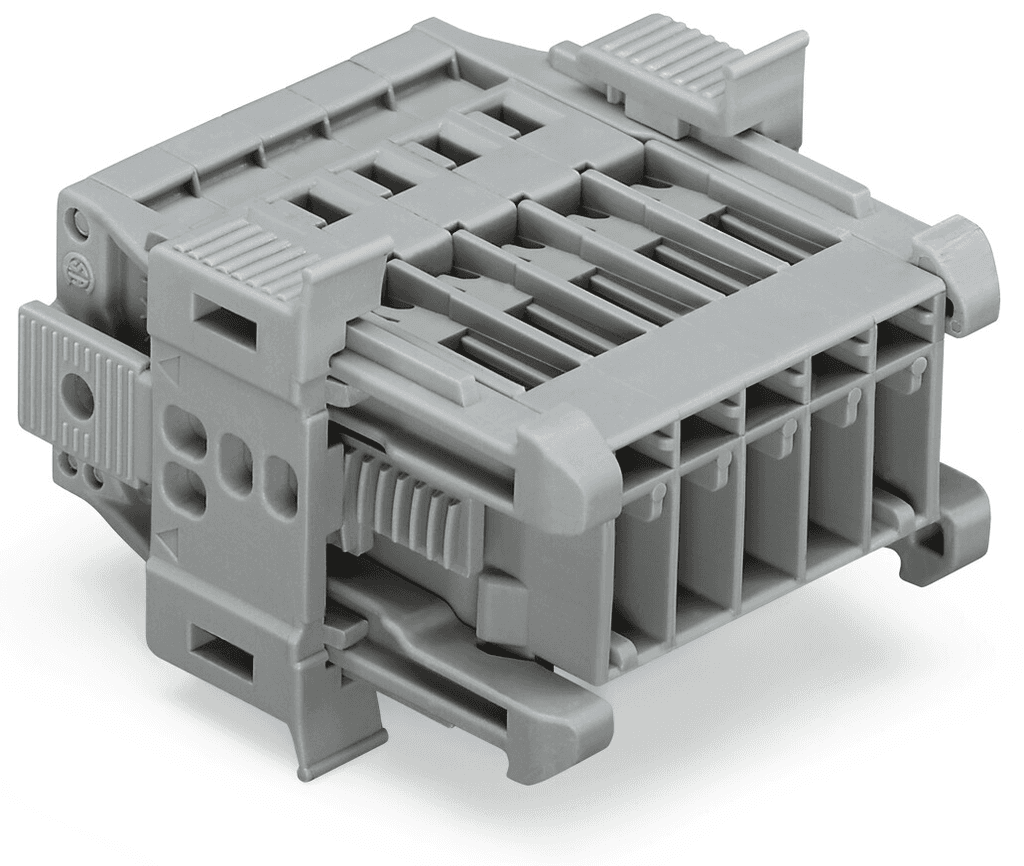

769-615/006-000 WAGO - X-COM® through-panel connector (male); CAGE CLAMP® connection; 15-pole; pole spacing 5 mm / 0.197 in; with adjustable snap-in flanges
Product Details
- Weight 48.19001267 g
- Country Of Origin Poland
- HTS Code 85366990990
- Height 1.181 inches, 30 millimeters
- Flammability Class V0
- Width 3.516 inches, 89.3 millimeters
- Connection Type For Conductor
- Strip Length 0.35 inches, 9 millimeters
- Conductor Size 12 american wire gauge, 4 millimeters
- Package Type Box
- Country of Origin Poland
- Voltage 500 volts
- Actuator Operating Tool
- Insulation Material Polyamide
- Depth 1.642 inches, 41.7 millimeters
- Color Gray
- Mounting Type Snap-in Flange Variant
- Conductor Material Copper
- Operating Temperature 105 degrees celsius
- Current 32 amperes
- Weight 48.190 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 769-615/006-000 on Powermatic Associates is $22.79. Order now.
About the product
Wago 769-615/006-000 is a male connector designed with CAGE-CLAMP spring connections for secure and reliable connectivity. It supports a rated current of 32A and is equipped with snap-in flanges for easy installation. The connector has a pin spacing of 5mm and is designed to accommodate a wide range of conductor sizes, from 0.08mm2 to 4mm2 stranded conductors, 0.08mm2 to 4mm2 solid conductors, and #28AWG to #12AWG for both stranded or solid wires. The nominal cross-section is 4mm2. This part is part of the X-COM series and is made from Polyamide (PA) 66, ensuring durability. It features a 15-pole (15P) configuration and has dimensions of H30mm x W89.3mm x D41.7mm. The connector operates with a control voltage of AC snap-in, has a power consumption color coded as Gray, and is designed for a network frequency with a diameter rated at (IEC) 500 V.
