770-1947 WAGO Industrial Automation Components

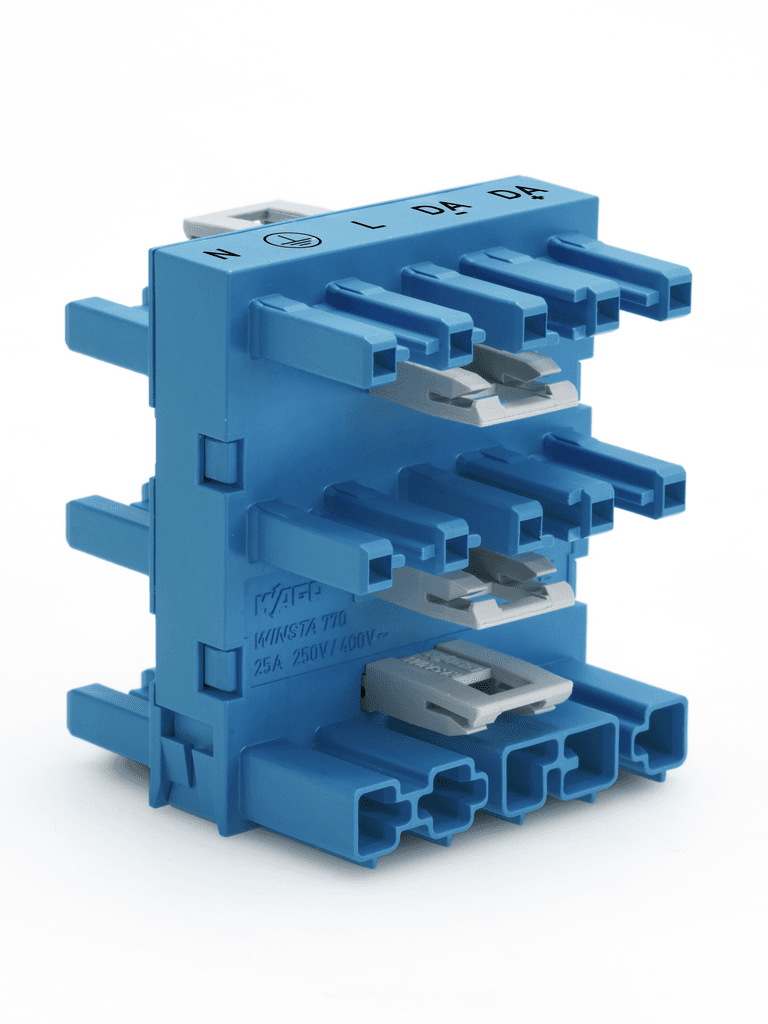

WAGO 770-1947 is a distribution connector with a 5-way connection designed for DALI and lighting management applications. It features a nominal voltage of 400V with a rated impulse voltage of 6kV and a rated current of 25A according to IEC/EN 60664-1 standards. For the US market, it has a rated voltage of 600V and a rated current of 23A per UL 1977, with specific versions suitable for current interruption in select applications below 16A. The connector has a contact resistance of approximately 1mΩ and a contact transition plug/socket of approximately 0.25mΩ. It supports a total of 5 potentials with a preceding PE contact and has a pin spacing of 10mm. The physical dimensions include a width of 50mm, height of 58.2mm, and depth of 46mm. It is coded as type I, without variable coding, and marked with N PE L DA- DA+. The mating force of a plug-in connection ranges from approximately 20 to 70N, with a retention force when locked of >80N, and an unmating force of approximately 20 to 70N. It is designed for 200 mating cycles without resistive load and is classified as a distribution connector with IP20 protection, increasing to IP2xC when mated. The connector features socket/plug contact types with mismating protection and a locking lever system to ensure secure connections. It comes in blue, made from Polyamide (PA66) with a flammability class of UL94 V0, and copper or copper alloy contacts with tin plating. The fire load is 1.04MJ, and it weighs 64g. It operates within a temperature range of -5 to +40°C for processing and -35 to +85°C for continuous operation, with insulating parts rated for temperatures ≤ 105°C. Packaged in boxes of 20 pieces, it is manufactured in Germany with a GTIN of 4055143706940 and a customs tariff number of 85366990990. This product complies with RoHS without exemptions.
