787-2810 WAGO Industrial Automation Components
Part#:787-2810
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

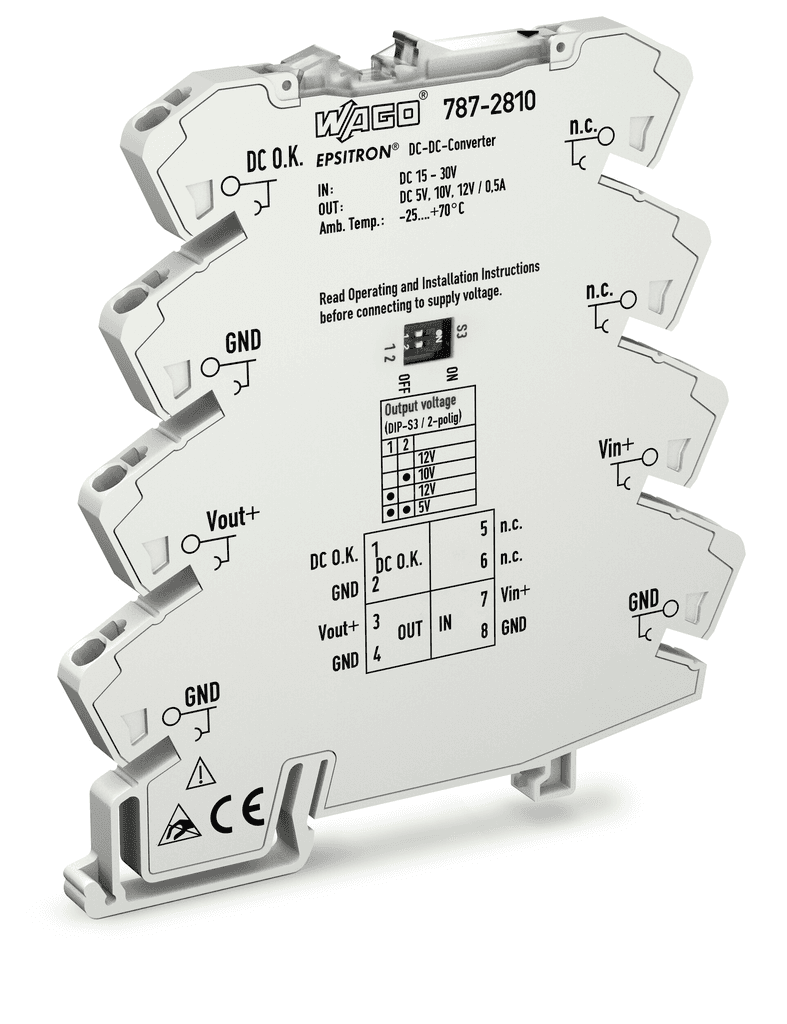

787-2810 WAGO - DC/DC converter; input voltage 24 VDC; adjustable output voltage 5/10/12 VDC; 0.5 A
Product Details
- Weight 36.40000957 g
- Country Of Origin Germany
- HTS Code 85044082900
- Mounting Type DIN-35 Rail
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Width 0.236 inches, 6 millimeters
- Strip Length 0.39 inches, 10 millimeters
- Country of Origin Germany
- Weight 36.400 grams
- Package Type Bag
- Height 3.701 inches, 94 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 787-2810 on Powermatic Associates is $105.50. Order now.
About the product
Wago 787-2810 is a DC/DC power supply unit (PSU) / converter module designed for a supply voltage range of 15-30Vdc, with a nominal 24Vdc. It features push-in CAGE-CLAMP spring connections for easy installation and is rated at 0.5A current and 6W power. This unit does not operate with an AC supply voltage and is designed to work within an ambient air temperature range for operation of -25°C to +70°C and for storage from -40°C to +85°C. It offers protection ratings of IP20 and is equipped with short-circuit and open circuit protection mechanisms. The rated insulation voltage (Ui) is 6 mm, and it has a response time detailed with dimensions of H94mm x W6mm x D97.8mm. The product is suitable for mounting on a DIN-35 rail and can be replaced by models offering output voltages of 5Vdc, 10Vdc, 12Vdc, or an adjustable range of 11.64-12.36Vdc. The output error is within 3%, and it operates efficiently within a humidity range up to 95% RH without condensation. The output voltage ripple is specified at 20mVpp.
