788-346 WAGO Industrial Automation Components

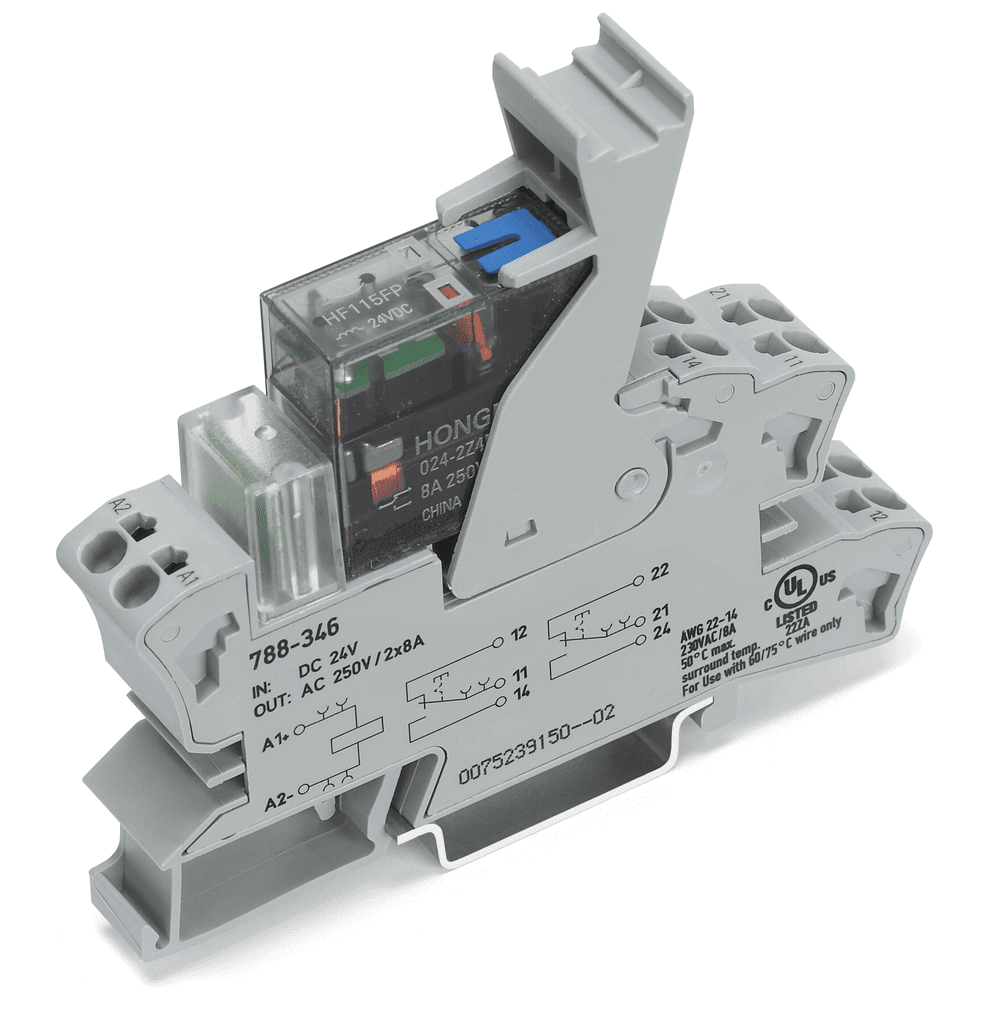

Wago 788-346 is a plug-in relay assembly featuring push-in CAGE CLAMP spring connections for efficient setup. It operates with a rated current of 8A continuously, with specific ratings for different conditions: 1.5A at 240Vac (AC-15), 1A at 24Vdc (DC-13), and can handle inrush maximum currents of 16A for 20ms and 12A for 4s in AC. The relay is designed with a socket base, includes a red LED indicator, and follows an electromechanical design principle. It recommends a minimum switching load of 12V / 10mA. The relay has 2C/O or DPDT (Double Pole Double Throw) contact resistance, and it is suitable for ambient air temperatures ranging from -40°C to +70°C for storage. It offers a degree of protection rated at IP20 and has a control voltage range of 21.6-26.4Vdc (24Vdc nominal) with a net width of 15mm. The relay's dimensions are H86mm x W15mm x D73mm, and it features silver-nickel (AgNi) contacts. It is designed for a rated operating voltage (Ue) with a primary current sensitivity allowing for quick switching times: 15ms for contacts closing and 8ms for contacts opening. The relay supports up to 10,000 operations at a rated voltage (AC) phase-to-neutral and has a durability of 5,000,000 operations. It is mounted on a DIN-35 rail, indicating compatibility with standard rail systems for easy installation.
