788-506 WAGO Industrial Automation Components

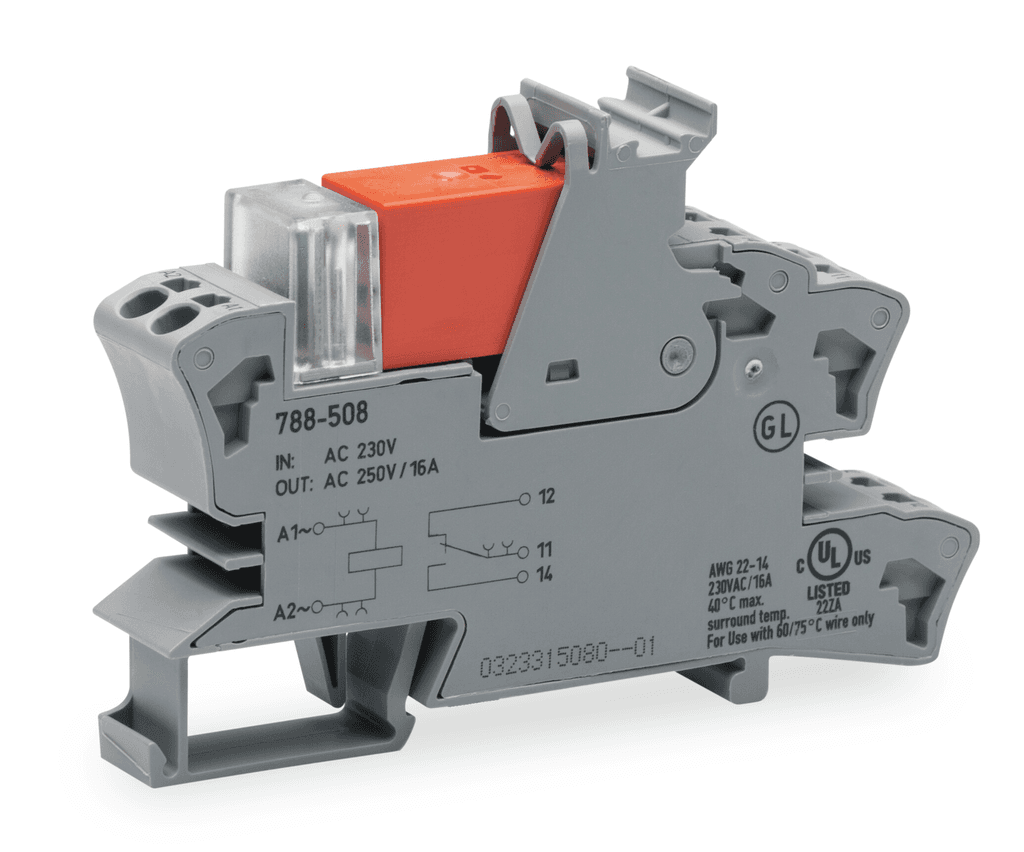

Wago 788-506 is a plug-in relay assembly featuring push-in CAGE CLAMP spring connections for efficient setup. It is designed to handle a rated current of 16A continuously, with specific ratings for different conditions: 6A at 250Vac (AC-15), 2A at 24Vdc (DC-13), and a maximum inrush current of 30A for 4 seconds at AC. The relay operates with a socket base and includes a red LED for status indication, employing an electromechanical design. It recommends a minimum switching load of 12V / 10mA. The relay offers a resistance of 1C/O / SPDT (Single Pole Double Throw) contact and can be stored in ambient air temperatures ranging from -40°C to +70°C. It provides a degree of protection rated at IP20 and is designed for mounting on a DIN-35 rail within a compact size of H86mm x W15mm x D54mm, making it suitable for single-pole (1P) mounting. The power consumption ranges between 21.6-26.4Vac (24Vac nominal), with a control voltage and rated voltage (AC) also accommodating a -40°C to +70°C range. The relay's contacts are made from Silver-Nickel (AgNi 90/10) for durability, and it is designed to support up to 30,000 operations at a rated operating voltage (Ue) and 5,000,000 operations for trip current rating, ensuring long-term reliability.
