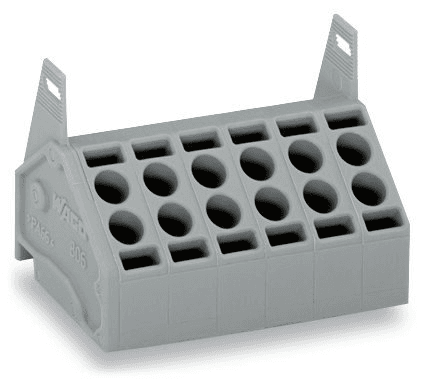

806-203 WAGO Industrial Automation Components

WAGO 806-203 is a printed circuit connector with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 250V (III/3), 320V (III/2), and 630V (II/2), with a rated impulse voltage of 4kV for all categories and a rated current of 10A. This part is approved per UL 1059, with a rated voltage for UL Use Group B and D at 300V, and a rated current for both groups at 10A. CSA approvals include a rated voltage and current for Use Group B at 300V and 10A, respectively. It has 6 connection points, 3 potentials, and utilizes a push-in CAGE CLAMP connection technology with an operating tool actuation type. The connector accommodates solid and fine-stranded conductors ranging from 0.2 to 1.5mm2 (24 to 16 AWG), with strip length requirements of 9 to 10mm. The conductor connection direction to the PCB is at a 45-degree angle, and it has a pole number of 3. Physical specifications include a pin spacing of 5mm, width of 16.5mm, height of 23.3mm, depth of 19.8mm, and a solder pin diameter of 1mm. It features a female connector/socket for PCB with a mating direction of 90 degrees. The connector is made from Polyamide (PA66) in gray, with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel for the clamping spring and a copper alloy with tin plating for contacts. It has a fire load of 0.084MJ and weighs 4.1g. The operational temperature range is from -60 to +105°C. It is RoHS compliant without exemptions, packaged in boxes of 484 pieces, and has a GTIN of 4045454077075 with a customs tariff number of 85366990990. The country of origin is Poland.
