869-132 WAGO Industrial Automation Components
Part#:869-132
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

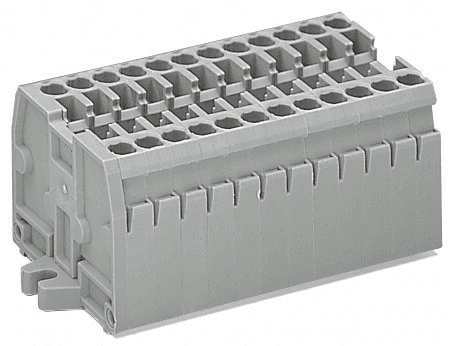

869-132 WAGO - 2-conductor terminal strip; without push-buttons; with fixing flanges M3; 2-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; light gray
Product Details
- Weight 9.992002628 g
- Country Of Origin Germany
- HTS Code 85369010000
- Actuator Operating Tool
- Current 24 amperes
- Voltage 500 volts
- Mounting Type Mounting Flange M3
- Conductor Material Copper
- Package Type Box
- Country of Origin Germany
- Color Gray
- Weight 9.992 grams
- Depth 1.315 inches, 33.4 millimeters
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Strip Length 0.28 inches, 7 millimeters
- Insulation Material Polyamide
- Flammability Class V0
- Width 0.965 inches, 24.5 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 869-132 on Powermatic Associates is $4.40. Order now.
About the product
Wago 869-132 is a terminal strip designed for feed-through applications, featuring CAGE-CLAMP spring connections for secure and maintenance-free wiring. It supports a rated current of 24A according to IEC standards and 20A as per UL standards. This 1-deck terminal strip comes with M3 fixing flanges for easy installation. It is designed to accommodate a wide range of conductor sizes, from 0.08mm2 to 4mm2 for fine stranded conductors, 0.08mm2 to 2.5mm2 for solid conductors, and #28AWG to #12AWG for both fine stranded and solid conductors. The terminal strip is made from polyamide (PA) 66 and halogen-free materials, ensuring durability and safety. It features a compact design with dimensions of H27.6mm x W24.5mm x D33.4mm and includes 4-wires (2 clamps + 2 clamps) configuration for versatile connectivity. The terminal strip is rated for a voltage of 500V according to IEC standards and 300V according to UL standards, with a control voltage (AC) through a 3.2mm fixing hole. The color is light gray, facilitating clear identification in complex wiring environments.
