870-687 WAGO Industrial Automation Components
Part#:870-687
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

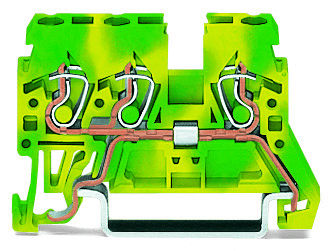

870-687 WAGO - 3-conductor ground terminal block; 2.5 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; green-yellow
Product Details
- Weight 7.297001919 g
- Country Of Origin Germany
- HTS Code 85369010000
- Height 1.929 inches, 49 millimeters
- Width 0.197 inches, 5 millimeters
- Country of Origin Germany
- Weight 7.297 grams
- Mounting Type DIN-35 Rail
- Color Green, Yellow
- Actuator Operating Tool
- Operating Temperature 105 degrees celsius
- Insulation Material Polyamide
- Flammability Class V0
- Strip Length 0.28 inches, 7 millimeters
- Conductor Material Copper
- Package Type Box
- Conductor Size 12 american wire gauge, 2.5 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 870-687 on Powermatic Associates is $4.82. Order now.
About the product
Wago 870-687 is a ground/earthing terminal block featuring CAGE-CLAMP spring connections and a 1-deck/level design with lateral marking slots. It is designed for DIN-35 rail mounting (35 x 15 / 35 x 7.5) and has a net width for 1 grounding / protective-earth (1PE). The terminal is rated for an impulse voltage (Uimp) of 5 mm and accommodates a wide range of conductor sizes, including 0.08mm2 to 4mm2 fine stranded conductors, 0.08mm2 to 2.5mm2 solid conductors, and #28AWG to #12AWG fine stranded or solid conductors. The terminal block is made from Polyamide (PA) 66, has dimensions of H49mm x W5mm x D27.5mm, and is designed for use with 3-wires (2 clamps + 1 clamp) (2+1) in the X-COM series. The color coding is green-yellow, indicating its function as a grounding or protective-earth terminal.
