870-832 WAGO Industrial Automation Components

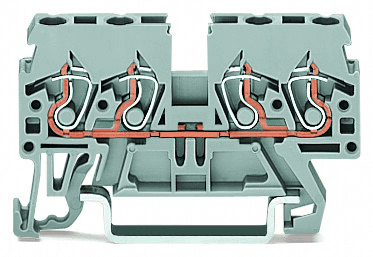

Wago 870-832 is a feed-through terminal block designed for efficient wire connection and distribution. It features CAGE-CLAMP spring connections for secure and maintenance-free wire termination. This terminal block is rated for a current of 24A according to IEC standards and 20A according to UL standards. It is designed with a single deck that includes side and center marking slots for easy identification. The terminal block is compatible with DIN-35 rail mounting, supporting both 35 x 15 and 35 x 7.5 sizes. It accommodates a wide range of conductor sizes, from 0.08mm2 to 4mm2 for fine stranded conductors and 0.08mm2 to 2.5mm2 for solid conductors, equivalent to #28AWG to #12AWG. The terminal block is constructed from Polyamide (PA) 66, ensuring durability and resistance to environmental factors. It has a net height of 6 kV for impulse voltage, a rated impulse voltage (Uimp) of 5 mm, and a net width accommodating 1 feed-through pole (1P). The dimensions are specified as H55mm x W5mm x D27.5mm, and it is designed to operate with a control voltage on AC DIN-35 rail. The terminal block is part of the X-COM series and is colored orange for easy identification within a wiring system. It supports a network frequency and voltage rating of 500V according to IEC standards and 300V according to UL standards, with a 4-wire connection setup (2 clamps + 2 clamps) for comprehensive wiring solutions.
