S18SP6DQPMA Banner Retroreflective Sensors

S18SP6DQPMA on Powermatic Associates
Banner

Part#:S18SP6DQPMA

Alt. Part#:81870

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

S18SP6DQPMA 4-PIN M12 6 in PUR

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    MX
  • Input/Output
    Discrete
  • Delay at Power-up (ms)
    100
  • Indicator
    LEDs
  • Feature: Audible
    No
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • Special Feature: Intrinsically Safe
    No
  • NEMA Rating
    NEMA 6P
  • IO Link
    No
  • Outputs
    PNP
  • Housing Style
    Barrel
  • Min Op. Temp. (°C)
    -40
  • Special Feature: Remote Teach
    No
  • Number of Pins
    4
  • Barrel Diameter (mm)
    18
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Hazardous Area
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Max Sensing Distance (mm)
    100
  • Max Op. Temp. (°C)
    70
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Ecolab Certified
    Yes
  • Sensing Mode (General)
    Proximity
  • Power Supply/Supply Voltage
    10-30 V dc
  • Operation
    Light/Dark Operate
  • Adjustments
    N/A
  • Feature: Chemical Resistant
    No
  • Sensing Beam
    Infrared LED
  • Sensing Mode (Detailed)
    Diffuse
  • Connection
    Pigtail PUR QD
  • Output response time (ms)
    3
  • DeviceNet
    No
  • Primary Housing Material
    Thermoplastic
  • Special Feature: Water Detection
    No
  • Lens Material
    Acrylic
  • Feature: Encapsulated
    No
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Repeatability (µs)
    750
  • IP Rating
    IP67, IP69

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18SP6DQPMA on Powermatic Associates is $96.00. Order now.

About the product

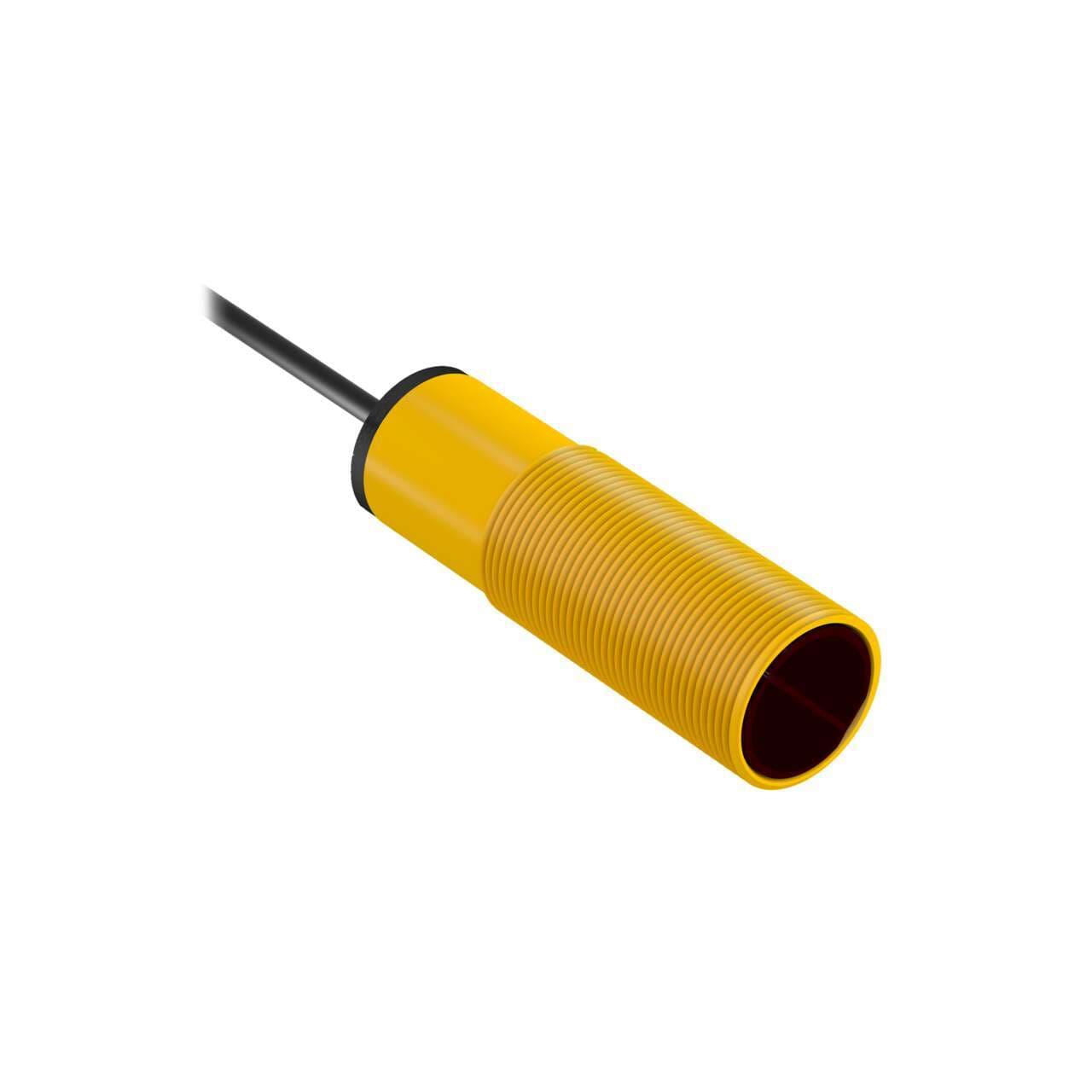

Banner Engineering S18SP6DQPMA is a photo-electric sensor from the S18 DC series designed in a diffuse mode with a thermoplastic housing, acrylic lens, and a polyurethane (PUR) cable sheath. It features a pre-wired connection with a 6" / 150mm PUR cable terminated with a 4-pin Euro-style M12 connector. The sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. The S18SP6DQPMA has a cylindrical threaded/barrel shape with an M18 thread size. It includes 1 x digital output (PNP transistor; complementary NO/NC), a sensing distance of 100mm, and operates with infrared (IR) light at a wavelength of 880 nm. The sensor's response time is 3ms / 0.003 s, and it supports both Light-ON and Dark-ON operating modes.
