S18SP6FF100QP Banner Retroreflective Sensors

S18SP6FF100QP on Powermatic Associates
Banner

Part#:S18SP6FF100QP

Alt. Part#:75248

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

S18SP6FF100QP 6 in 4-PIN M12

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • Feature: Audible
    No
  • Max Sensing Distance (mm)
    100
  • Max Op. Temp. (°C)
    70
  • IP Rating
    IP67, IP69
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Operation
    Light/Dark Operate
  • Delay at Power-up (ms)
    100
  • Feature: Ecolab Certified
    Yes
  • Primary Housing Material
    Thermoplastic
  • Connection
    Pigtail QD
  • Repeatability (µs)
    750
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Health/ Marginal Signal Output
    Yes
  • Outputs
    PNP
  • Sensing Beam
    Infrared LED
  • Special Feature: Water Detection
    No
  • Barrel Diameter (mm)
    18
  • Feature: Chemical Resistant
    No
  • Sensing Mode (General)
    Proximity
  • Min Op. Temp. (°C)
    -40
  • NEMA Rating
    NEMA 6P
  • Feature: Timing (Hold/Delay)
    No
  • IO Link
    No
  • Input/Output
    Discrete
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Pins
    4
  • Indicator
    LEDs
  • DeviceNet
    No
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Output response time (ms)
    3
  • Adjustments
    N/A
  • Feature: Encapsulated
    No
  • Housing Style
    Barrel
  • Special Feature: Remote Teach
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Washdown Rated
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18SP6FF100QP on Powermatic Associates is $147.00. Order now.

About the product

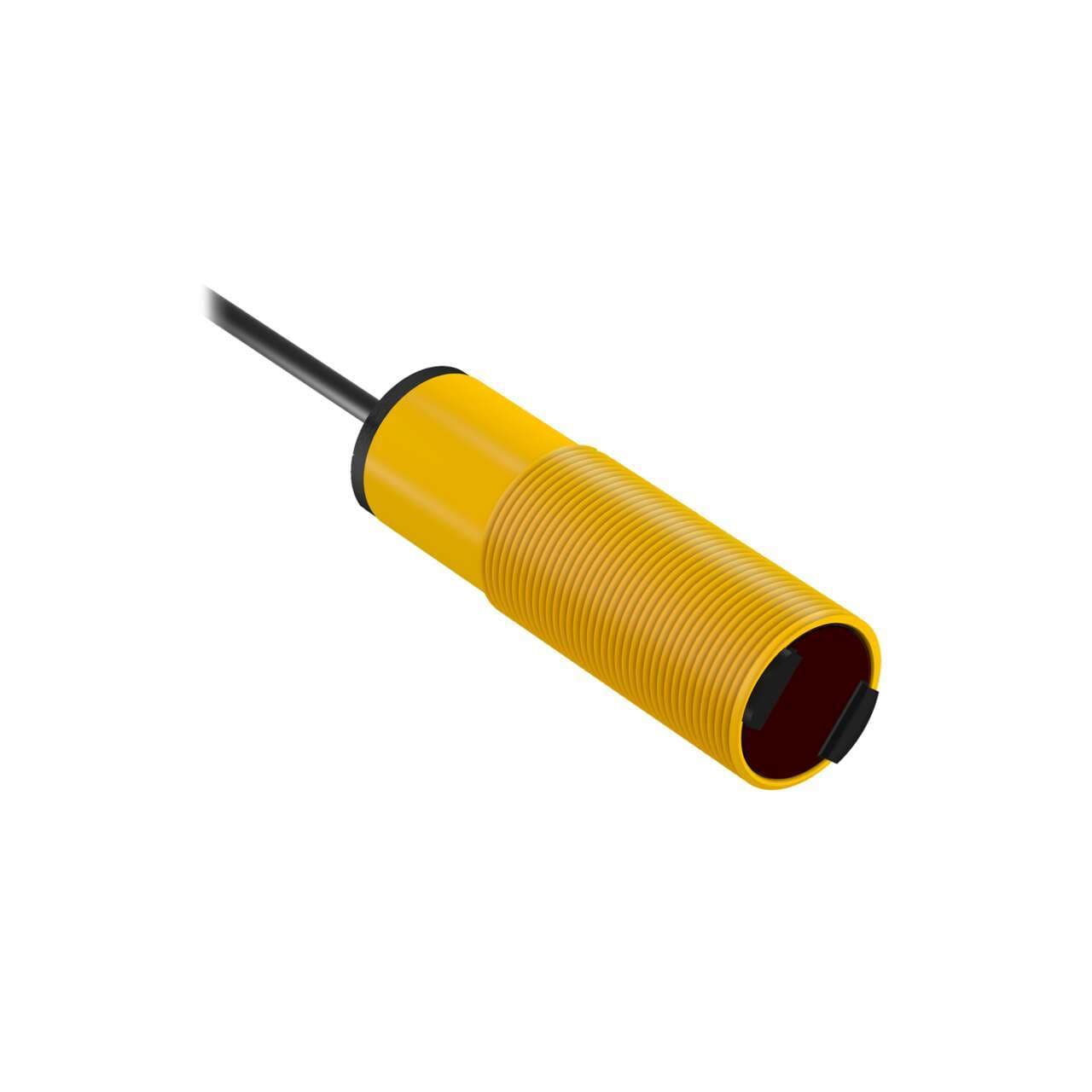

Banner Engineering S18SP6FF100QP is a fixed-field photo-electric sensor from the S18 DC series, featuring a background suppression system. This sensor is housed in thermoplastic with an acrylic lens and is designed with an M18 cylindrical threaded/barrel shape. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. The sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP67, IP69K, and NEMA 6P. The S18SP6FF100QP has a sensing distance of 100mm and utilizes infrared (IR) light with a wavelength of 880 nm. It features a digital output (PNP transistor; complementary NO/NC), a response time of 3ms / 0.003 s, and supports both Light-ON and Dark-ON operating modes.
