AB7895-F HMS Networks Industrial Automation Components

AB7895-F on Powermatic Associates
HMS Networks

Part#:AB7895-F

Manufacturer:HMS Networks

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

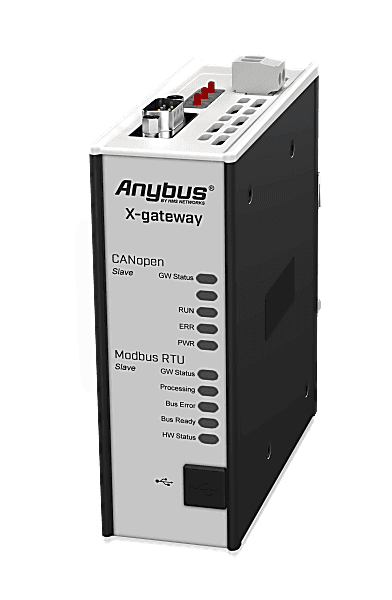

Anybus X-gateway – CANopen Slave - Modbus RTU Slave

Product Details

  • Manufacturer description
    Anybus X-Gateways - Network 1 CANopen Slave / Network 2 Modbus RTU Slave
  • Customs Tariff Number
    8517620090
  • Primary brand
    eWON by HMS Networks
  • Current Consumption Type Value at Vcc Nom (mA)
    200mA @ 24V DC
  • Storage Temperature °C Max
    85 °C
  • UL File Number
    E214107: Ord.Loc UL508, CSA C22.2 NO. 142
  • HS Code
    8517620000
  • CANopen Input Data Size
    512 bytes
  • Power Connector
    2-pin, 5.08 Phoenix plug connector
  • Operating Temperature °C Max
    65 °C
  • FCC
    No
  • CANopen Mode
    Slave mode
  • Net Weight (ERP) (g)
    400 g
  • Isolation
    TRUE
  • EMC
    Yes
  • Dual Usage (ERP)
    No
  • Modbus-RTU Baud Rate
    1200bps - 57600bps
  • Current Consumption Max value at Vcc nom (mA)
    400mA @ 24V DC
  • Housing Materials
    Aluminum, Plastic
  • RoHS Compliant
    Yes
  • CANopen Supported Functionality
    PDO, SDO;DS301 v4.02
  • Mounting
    DIN-rail (EN 50022 standard)
  • Operating Temperature °C Min
    -25 °C
  • Waste Certification (WEEE)
    Yes
  • Country of Origin
    Sweden
  • Modbus-RTU Supported Functionality
    Modbus-RTU compliant passive slave node operation; 256 Modbus registers in each direction; Modbus diagnostics
  • Net Height (ERP) (mm)
    127 mm
  • Short Circuit Protection
    Yes
  • WEEE Category
    IT and telecommunications equipment
  • Export Control Classification Number (ECCN) (ERP)
    5A991.b.4b
  • Modbus-RTU Mode
    Slave mode
  • Net Depth (ERP) (mm)
    114 mm
  • Storage Temperature °C Min
    -40 °C
  • UL
    Yes
  • DIP & Rotary Switches
    3x Rotary CAN Address + Baudrate, dip switch Termination and configuraiton
  • Modbus-RTU Output Data Size
    512 bytes
  • Input Voltage (V)
    24V DC (-20% to +20%)
  • Packaging Material
    Cardboard
  • Protection Class IP
    IP20
  • CANopen Baud Rate
    10 kbit/s - 1000 kbit/s
  • Modbus-RTU Input Data Size
    512 bytes
  • Net Width (ERP) (mm)
    44 mm
  • CE
    Yes
  • Recycle / Disposal
    TRUE
  • Contains Battery
    No
  • CANopen Configuration File
    EDS available
  • Reverse Polarity Protection
    Yes
  • Environment
    EN 61000-6-4, EN 55016-2-3 Class A, EN 55022 Class A, EN 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
  • Connectors / Input / Output
    1x D-sub 9-pin male, 1x D-sub 9-pin female, USB-B Config port
  • CANopen Output Data Size
    512 bytes
  • Modbus-RTU Functions Supported
    1, 2, 3, 4, 5, 6, 15, 16, 22, 23

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


About the product

Anybus by HMS Networks AB7895-F, part of the X-gateway series, is a protocol translator gateway designed for vertical or flat installation. It features galvanic isolation on both BUS/Ethernet sides and allows I/O configuration via USB port using Anybus Configuration Manager software. This gateway operates as a CANopen slave and Modbus RTU slave, equipped with 13 configuration switches, 2 node address switches (x10 / x1), and 1 baud rate switch. It includes 10 LED indicators for fieldbus/sub-network/device status. The AB7895-F requires a supply voltage of 19.2-28.8Vdc (24Vdc nominal) and measures H127mm x W44mm x D114mm. Its housing is made from aluminium and plastic, featuring a 9-pin D-sub female connector for serial RS-232/RS-485 (Modbus RTU), a 9-pin D-sub male connector for CANopen, a 2-poles 5.08mm plug-in screw connector for power (X3), and a USB connector (X4). It offers an IP20 NEMA 1 degree of protection and is designed for DIN rail mounting. The communication protocols supported are CANopen, Modbus RTU, and RS-485. It operates within an ambient air temperature range of -25...+65 °C, with a current consumption of 400mA (24Vdc; max.) and 200mA (typical). The storage temperature range is -40...+85 °C. The speed ranges are 10kbit/s...1Mbit/s for CANopen slave and 12kbit/s...57.6kbit/s for Modbus. It is designed to operate in environments with 5-95% relative humidity (RH; non-condensing).
