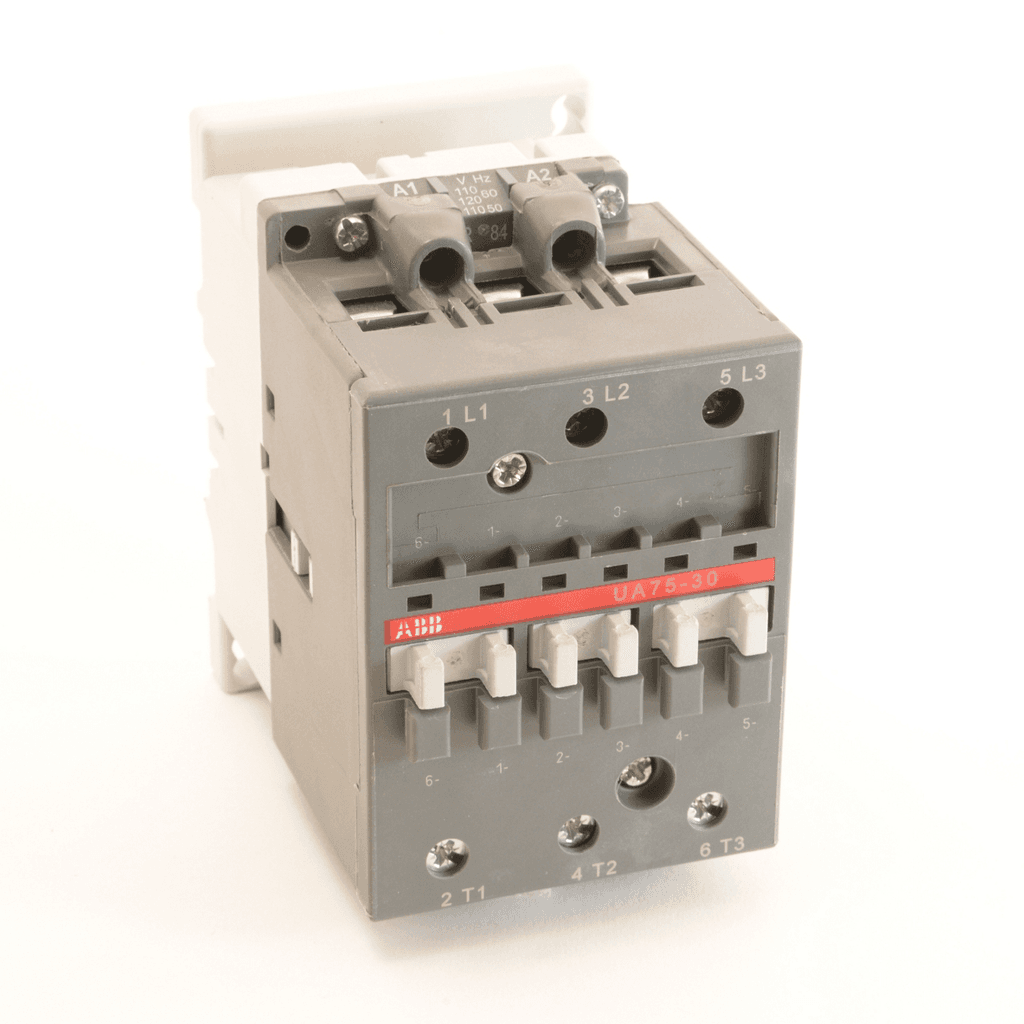

UA75-30-00-RA80 ABB Control Industrial Automation Components

43536

Icotek

Icotek 43536 - KEL-DP 40/9 A grey

8100644

Festo

twin-piston cylinder DGTZ-GF-25-80-P-A Stroke: 80 mm, Adjustable end-position range/length: 10 mm, Piston diameter: 25 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both ends

CSCM CKCM 12-11-8/S90

Turck

LGF36600U31X

Schneider Electric

Square D by Schneider Electric LGF36600U31X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT LGF sub-range, featuring a PowerPact L-Frame 600 Micrologic 3.3 (LI) design. It is a 3-pole (3P) device with a rated current of 600A and a rated insulation voltage (Ui) of 750 V. The rated voltage (AC) is 600Vac 600Y/347Vac. This MCCB offers long-time (L) and instantaneous (I) protection functions, with protection settings adjustable for overload (0.3...1 x In, 50A...150A) and short-circuit (1.5...11 x In, 900A...6600A) conditions. It is designed for individual unit mount on plate, with a Term. nut kit for fixed busbar connection on both line and load sides. The operating mode is manual toggle. The MCCB has a net height of 382 mm, width of 153 mm, and depth of 171 mm, with a degree of protection of IP40. The rated operating voltage (Ue) is 690 V, and the rated impulse voltage (Uimp) is 8 kV. The trip current rating is 600 AT, with a frame current rating of 600 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.3 (LI) with no display, and it falls under utilisation category A.

LGF36600U31XAAUOYH1

Schneider Electric

Square D by Schneider Electric LGF36600U31XAAUOYH1 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT LGF sub-range. It features a factory-installed 24Vdc undervoltage (U/V) trip release coil and a factory-installed 1A/1B (1NO+1NC) auxiliary switch OF wire harness. Designed for PowerPacT L-Frame 600 Micrologic 3.3 (LI), this 3-pole (3P) circuit breaker is rated for 600A and 600Vac, with a busbar rating of 80% and an 18kA busbar. It offers long-time (L) and instantaneous (I) protection functions, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual unit mount on plate, with a net height of 382 mm, width of 153 mm, and depth of 171 mm. It has an IP40 degree of protection and operates manually via a toggle. Protection settings include L - Protection against overload adjustable from 0.3 to 1 x In (50A to 150A) and I - Instantaneous protection against short-circuit adjustable from 1.5 to 11 x In (900A to 6600A). The control voltage (AC) specification indicates that the circuit breaker opens instantaneously when the undervoltage trip supply voltage drops between 35% and 70% of its rated control voltage, allowing closing when the supply voltage reaches 85% of rated control voltage. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 600 AT, with a frame current rating of 600 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Vac, 18kA at 600Y/347Vac, and 20kA at 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.3 (LI) with LI protection and no display, categorized under utilisation category A.

NQM330L6C

Schneider Electric

Square D by Schneider Electric NQM330L6C is a panelboard designed for three-phase (3PH-3W) networks with a rated voltage of 240Vac. It features a copper busbar, supports a rated current of 600A, and accommodates up to 30 circuits within its 30-space configuration. This panelboard interior is specifically engineered for organizing and distributing electrical power in various applications.

RK 4.5T-10-RS 4.5T/S679/S1587

Turck

RK 4.5T-10-RS 4.5T/S679/S1587 Turck - RK 4.5T-10-RS 4.5T/S679/S1587 Actuator and Sensor Cordset, Extension Cordset

HGL36100U33X

Schneider Electric

Square D by Schneider Electric HGL36100U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGL sub-range, featuring a PowerPact H-Frame 150 Micrologic 3.2S (LSI) design. It is a 3-pole (3P) device with a rated current of 100A and offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. The breaker has a rated insulation voltage (Ui) of 750 V, an AC rated voltage of 600Vac 600Y/347Vac, and a DC rated voltage of 500Vdc. It supports a mounting mode of individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. The degree of protection is IP40, and it operates via a toggle (manual) mechanism. Protection settings are adjustable for overload (0.35...1 x In), short-circuit with time delay (1.5...10 x lr), and instantaneous short-circuit protection (1.5...15 x In). The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, and the frame current rating is 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A. Connections are made via lugs on both load and line sides.

43536

Icotek

Icotek 43536 - KEL-DP 40/9 A grey

8100644

Festo

twin-piston cylinder DGTZ-GF-25-80-P-A Stroke: 80 mm, Adjustable end-position range/length: 10 mm, Piston diameter: 25 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both ends

CSCM CKCM 12-11-8/S90

Turck

LGF36600U31X

Schneider Electric

Square D by Schneider Electric LGF36600U31X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT LGF sub-range, featuring a PowerPact L-Frame 600 Micrologic 3.3 (LI) design. It is a 3-pole (3P) device with a rated current of 600A and a rated insulation voltage (Ui) of 750 V. The rated voltage (AC) is 600Vac 600Y/347Vac. This MCCB offers long-time (L) and instantaneous (I) protection functions, with protection settings adjustable for overload (0.3...1 x In, 50A...150A) and short-circuit (1.5...11 x In, 900A...6600A) conditions. It is designed for individual unit mount on plate, with a Term. nut kit for fixed busbar connection on both line and load sides. The operating mode is manual toggle. The MCCB has a net height of 382 mm, width of 153 mm, and depth of 171 mm, with a degree of protection of IP40. The rated operating voltage (Ue) is 690 V, and the rated impulse voltage (Uimp) is 8 kV. The trip current rating is 600 AT, with a frame current rating of 600 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.3 (LI) with no display, and it falls under utilisation category A.
