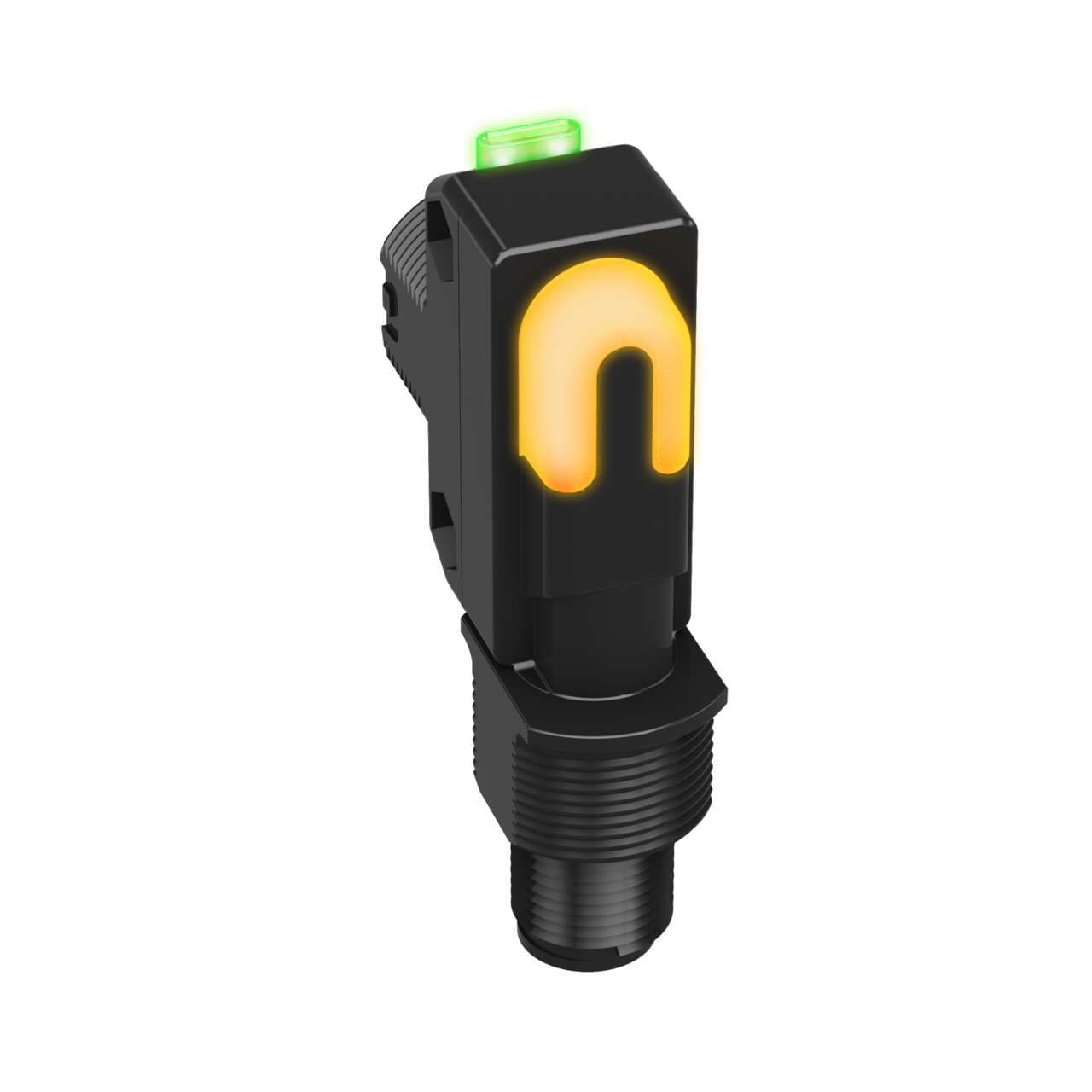

DS18AP6LPQ5 Banner Proximity Sensors
Part#:DS18AP6LPQ5
Alt. Part#:83477
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
DS18 AP6LPQ5 Polarized Retroreflective; Range: 3500 mm; Input: 10-30 V dc; Output: PNP Light Operate; 4-pin M12 QD; Indicator LEDS Follow Output
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Primary Housing Material Thermoplastic
- Output response time (ms) 2
- NEMA Rating NEMA 6
- DeviceNet No
- IP Rating IP67
- Sensing Mode (General) Retroreflective
- Operation Light Operate
- Number of Pins 4
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Outputs PNP
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 660
- Opposed Mode Emitter/Receiver N/A
- Max Sensing Distance (mm) 3500
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Indicator LEDs
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Repeatability (µs) 350
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Polarized
- Connection Integral QD
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DS18AP6LPQ5 on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering DS18AP6LPQ5 is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M18 threaded mount and is housed in thermoplastic with an acrylic lens. This sensor operates within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67 NEMA 6, making it suitable for various industrial environments. It emits visible red light with a wavelength of 660 nm and can detect objects up to a distance of 3.5m. The DS18AP6LPQ5 has a quick response time of 2ms and includes 1 x digital output (PNP transistor; complementary NO/NC) for efficient signal processing. It operates in Light-ON mode and is designed in a rectangular shape. For connectivity, it comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. This sensor requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal.
