DX80N2Q45BL-RG Banner Proximity Sensors
Part#:DX80N2Q45BL-RG
Alt. Part#:29044
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Wireless Q45 Sensor; Button & Light 2.4 GHz 65 mW; Red and Green LEDs
Product Details
- Weight 249.4756 g
- Country Of Origin US
- Power Battery
- Power Supply 2 AA Batteries
- Output Details Light
- Environmental Rating (IP) IP67
- Input Details One Button
- Device Type Push Button
- Input/Output Discrete
- Min Operating Temperature ( °C) -40
- PROFINET No
- Max Temp Operating Conditions 70
- Relative Humidity 90% at 50° C
- RS-485 No
- Min Temp Operating Conditions -40
- Point-to-Point Topology Yes
- Modbus/TCP No
- Point-to-Multipoint Topology Yes
- Tree Topology No
- 1-wire Serial Interface No
- Discrete Inputs Yes
- Modbus RTU No
- Wireless Radio Frequency 2.4 GHz
- Environmental Rating (NEMA) NEMA 6P
- Ships With Battery Yes
- Star Topology Yes
- Application: Indicator Light Yes
- Housing Style Integrated Battery
- Feature: Hazardous Area No
- RS-232 No
- Max Operating Temperature ( °C) 70
- EtherNet/IP No
- Wireless Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N2Q45BL-RG on Powermatic Associates is $399.00. Order now.
About the product

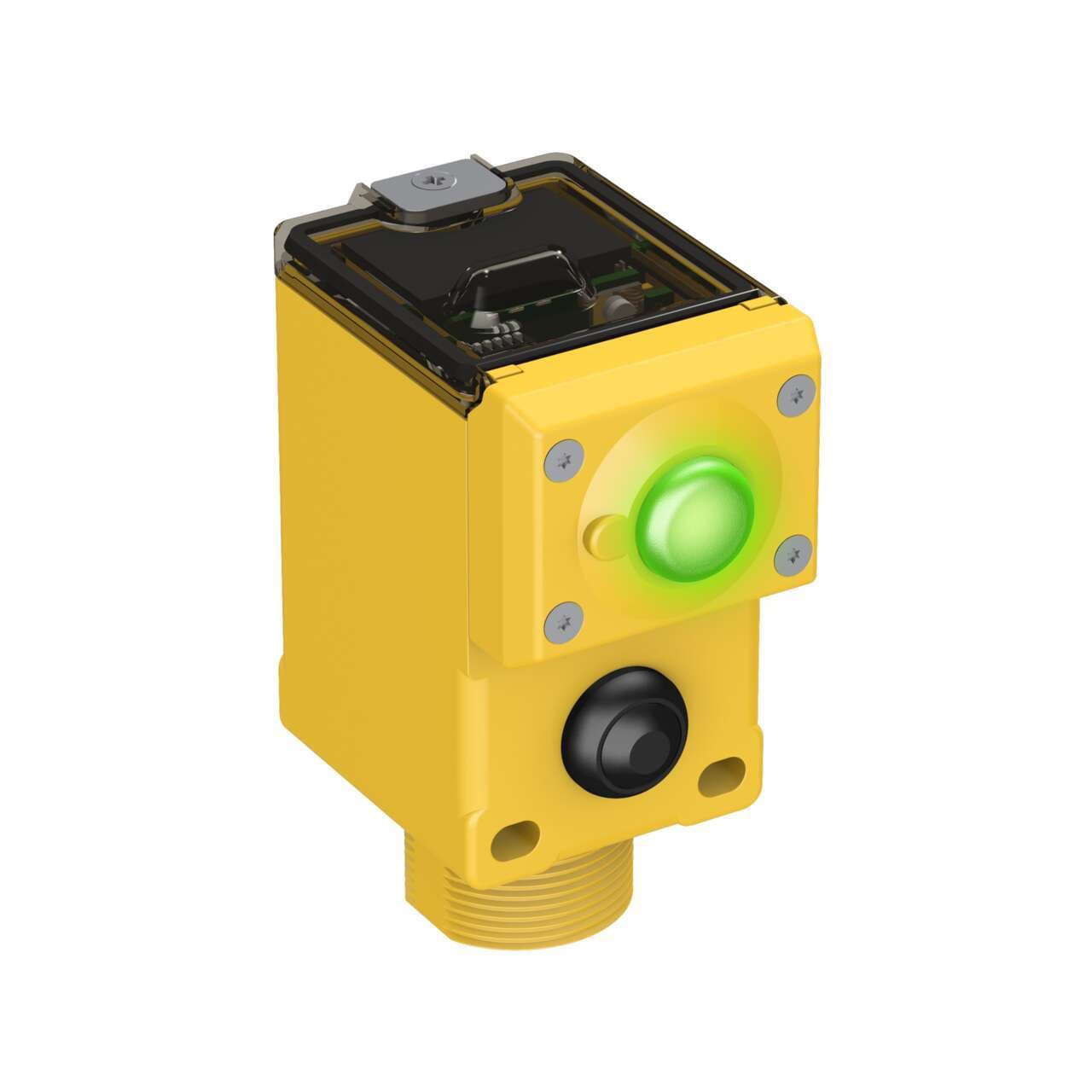

Banner Engineering DX80N2Q45BL-RG is a push-button device from the SureCross Q45 series, featuring a round flush button design with a 2-color LED light utilizing Frequency Hopping Spread Spectrum (FHSS) technology. It is constructed with a moulded reinforced thermoplastic polyester housing, an o-ring sealed transparent cover, a moulded acrylic lens, and stainless steel hardware, ensuring a degree of protection rated at IP67 and NEMA 6P. This device operates within an ambient air temperature range of -40 to +70°C and is designed for M30 thread mounting. The dimensions are H97.2mm x W44.5mm x D68.9mm. It offers a visual position indicator through red/green LEDs for radio status and discrete outputs, with a light color of red/green. Operating on a supply voltage of 3.6Vdc from an internal battery, it features a transmission frequency of 2400 MHz within the 2.4GHz ISM band at 65mW, capable of a maximum transmission distance of 1km at nominal emission power. The housing is yellow with a black button.
