DX80N2Q45BL-YG Banner Proximity Sensors
Part#:DX80N2Q45BL-YG
Alt. Part#:87463
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Wireless Q45 Sensor; Button & Light 2.4 GHz 65 mW; Yellow and Green LEDs
Product Details
- Weight 249.4756 g
- Country Of Origin US
- Input Details One Button
- Max Temp Operating Conditions 70
- Tree Topology No
- 1-wire Serial Interface No
- Input/Output Discrete
- Ships With Battery Yes
- Star Topology Yes
- RS-485 No
- Discrete Inputs Yes
- Point-to-Multipoint Topology Yes
- RS-232 No
- Device Type Push Button
- Max Operating Temperature ( °C) 70
- Feature: Hazardous Area No
- Wireless Radio Frequency 2.4 GHz
- Environmental Rating (IP) IP67
- Min Operating Temperature ( °C) -40
- Modbus/TCP No
- Environmental Rating (NEMA) NEMA 6P
- Housing Style Integrated Battery
- Point-to-Point Topology Yes
- PROFINET No
- Power Supply 2 AA Batteries
- Relative Humidity 90% at 50° C
- Modbus RTU No
- Power Battery
- EtherNet/IP No
- Output Details Light
- Min Temp Operating Conditions -40
- Application: Indicator Light Yes
- Wireless Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N2Q45BL-YG on Powermatic Associates is $399.00. Order now.
About the product

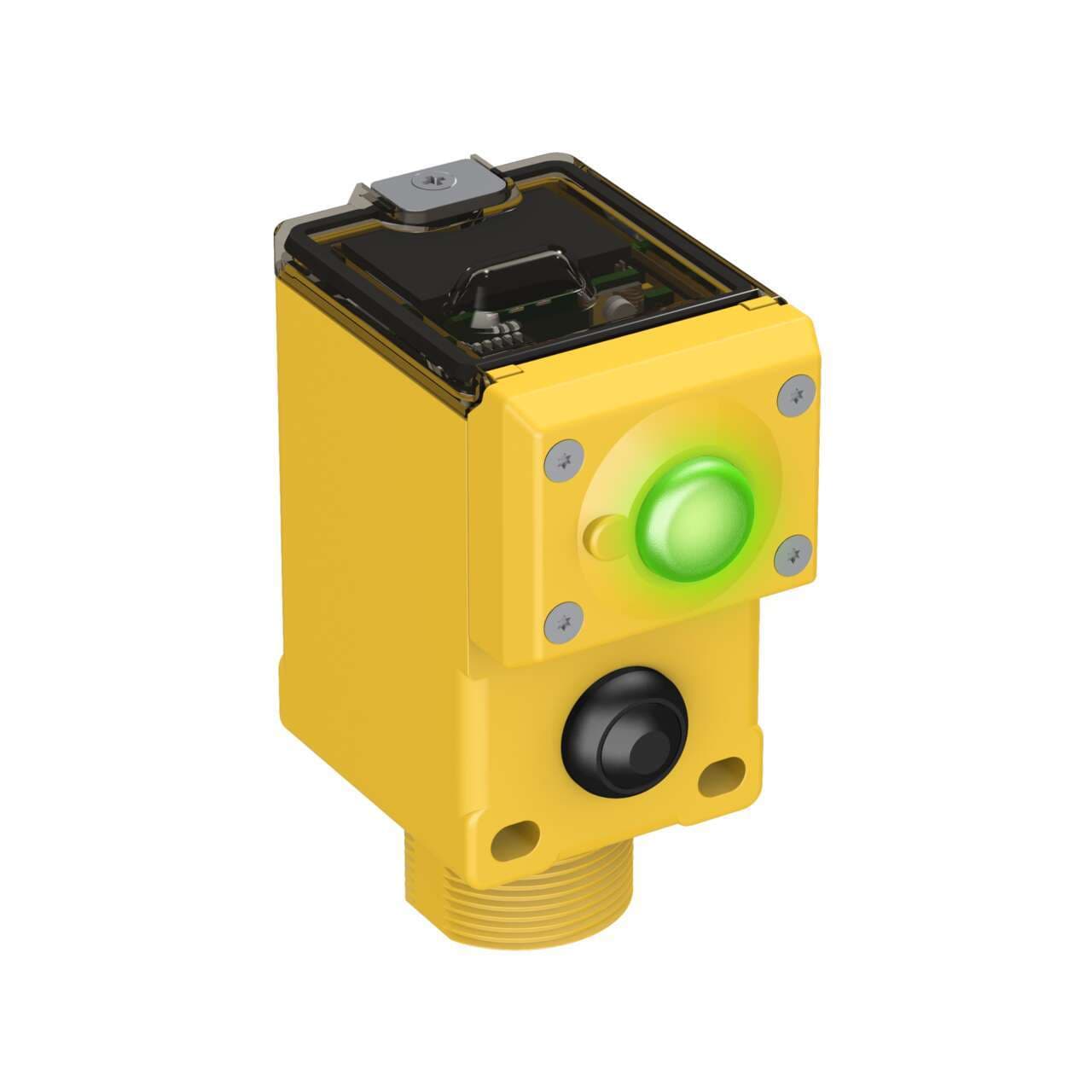

Banner Engineering DX80N2Q45BL-YG is a push-button device from the SureCross Q45 series, featuring a round flush button design with a 2-color LED light utilizing Frequency Hopping Spread Spectrum (FHSS) technology. It is constructed with a moulded reinforced thermoplastic polyester housing, an o-ring sealed transparent cover, a moulded acrylic lens, and stainless steel hardware, ensuring durability. This device operates within an ambient air temperature range of -40 to +70°C and offers a high degree of protection with an IP67 NEMA 6P rating. It has dimensions of H97.2mm x W44.5mm x D68.9mm. The light color is yellow/green with a visual position indicator showing red/green for radio status and yellow/green for discrete outputs. It operates on a 3.6Vdc supply voltage from an internal battery and communicates over a 2.4GHz ISM band with a 65mW frequency, capable of a maximum 1km transmission distance at nominal emission power. The mounting mode is an M30 thread, and the color scheme includes a yellow housing with a black button.
