DX80N2Q45RDL-QD Banner Proximity Sensors

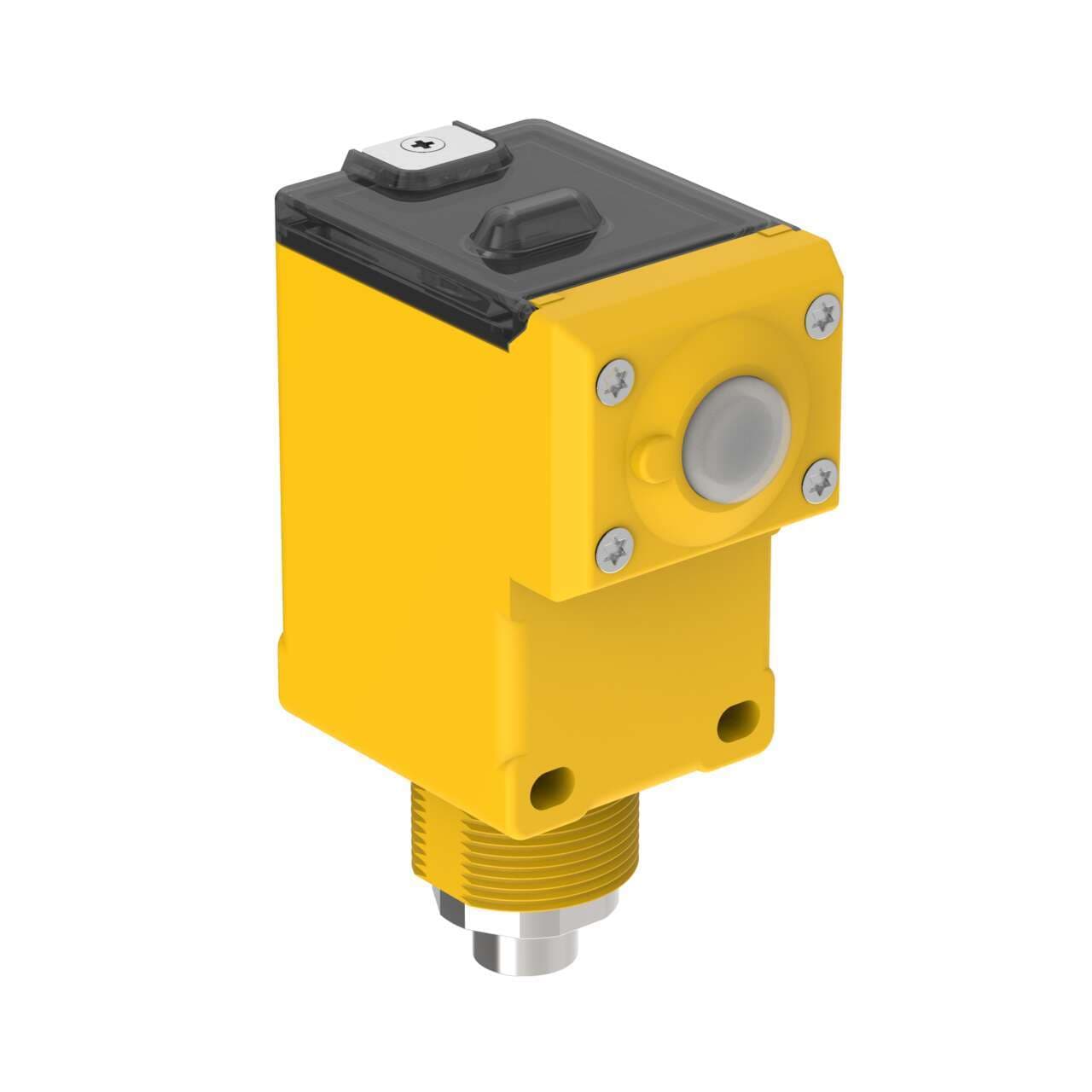

Banner Engineering DX80N2Q45RDL-QD is a Remote Terminal Unit (RTU) from the SureCross Q45 series, designed for versatile applications with its M30 thread mounting mode. It features a moulded reinforced thermoplastic polyester housing, an o-ring sealed transparent cover, a moulded acrylic lens, and stainless steel hardware, ensuring durability. The unit operates within an ambient air temperature range of -40 to +70°C and offers a high degree of protection with an IP67 NEMA 6P rating. Its dimensions are H97.2mm x W44.5mm x D68.6mm. The DX80N2Q45RDL-QD provides visual position indicators through red and green LEDs for radio status and an amber LED for discrete input. It operates on a 2400 MHz transmission frequency with a maximum transmission distance of 1km at nominal emission power. The device has a rectangular shape and includes 2 x digital inputs (2 x dry-contacts; can be used as 1 x NAMUR input) for remote device node functions. It utilizes 4-color LED FHSS (Frequency Hopping Spread Spectrum) technology for reliable communication and connects via a 5-pin M12 female connector. The supply voltage is 3.6Vdc from an internal battery, and it features a yellow housing. The operating frequency is within the 2.4GHz ISM band at 65mW.
