DX80N2Q45U Banner Proximity Sensors

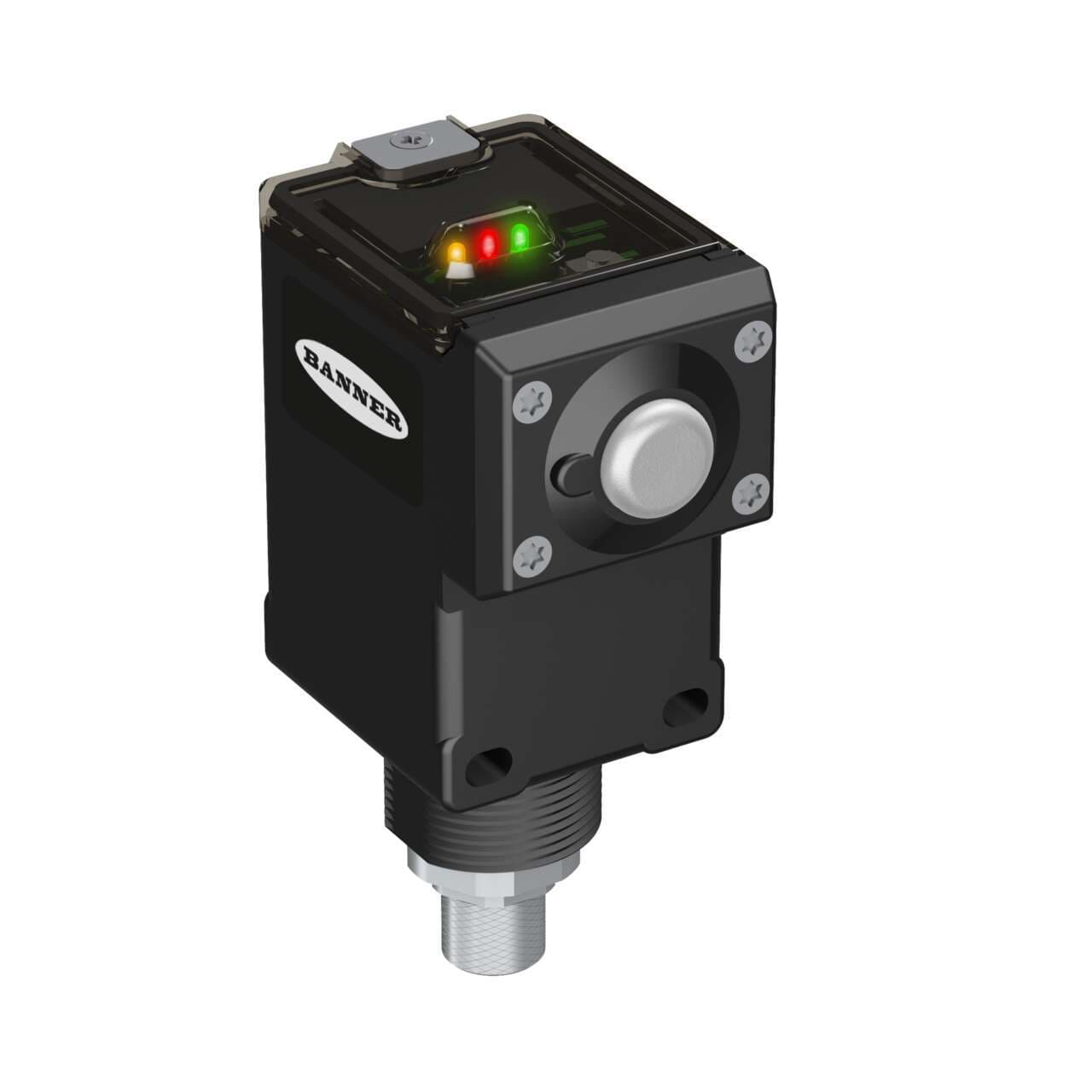

Banner Engineering DX80N2Q45U is a Remote Terminal Unit (RTU) from the SureCross Q45U series, designed for universal sensor node applications with a 1-wire serial interface. It features a moulded reinforced thermoplastic polyester housing with an o-ring sealed transparent polycarbonate cover, a moulded acrylic lens, and stainless steel hardware, ensuring durability. The unit operates within an ambient air temperature range of -40 to +70°C and offers a high degree of protection with an IP67 and NEMA 6P rating. Its dimensions are H118mm x W44.4mm x D68.6mm, and it has a rectangular shape with a black housing. The DX80N2Q45U utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication and is equipped with a 5-pin M12 female connector for connection. It operates on a 3.6Vdc supply voltage from an internal battery and supports a 2.4GHz ISM band frequency with a 65mW power output, capable of achieving a maximum transmission distance of 1km at nominal emission power. The device also features a visual position indicator with red/green LEDs to display radio status and offers light colors in red and green for clear signaling.
