DX80N9Q45LP Banner Proximity Sensors
Part#:DX80N9Q45LP
Alt. Part#:802376
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

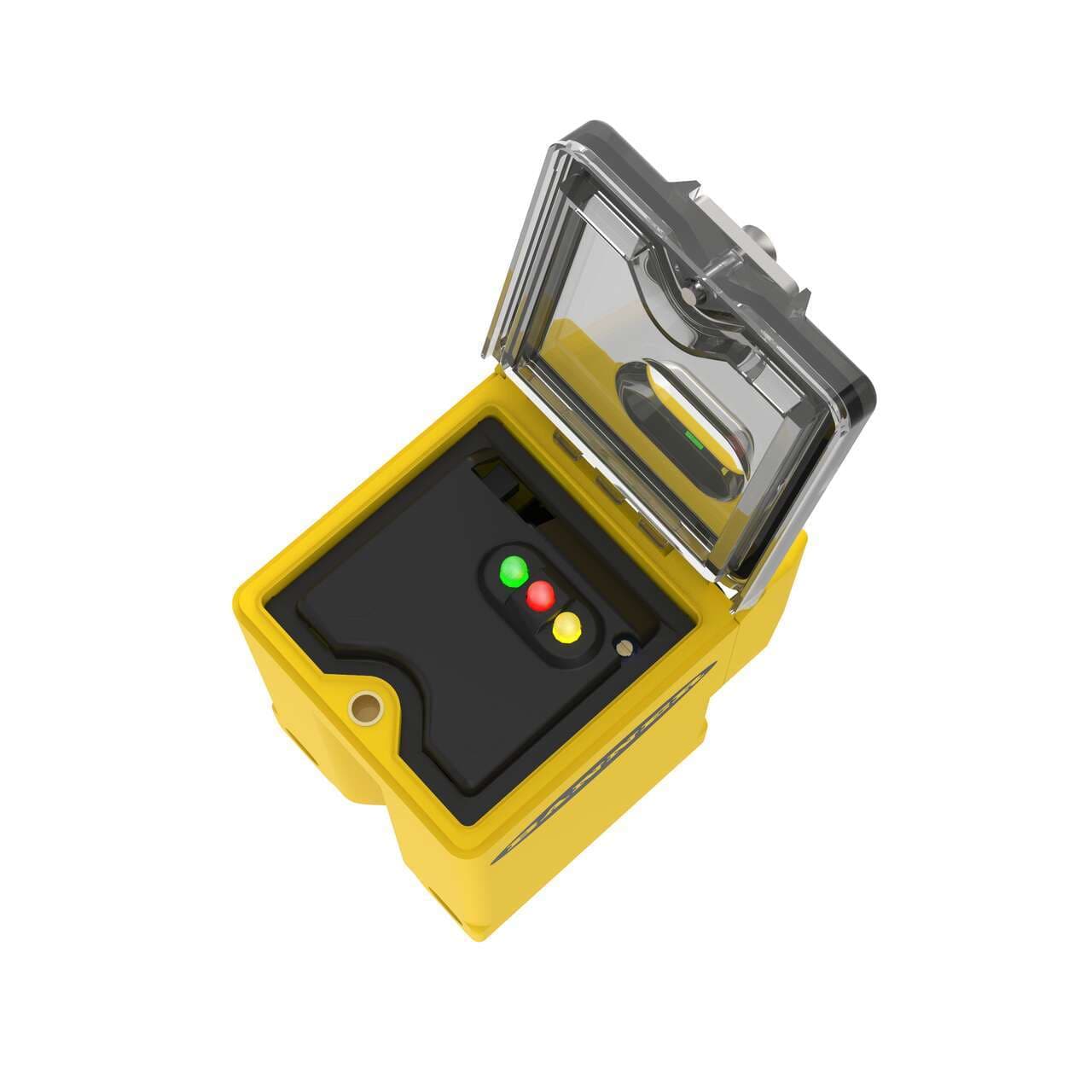

Wireless Q45 Photoelectric Sensor; Retroreflective 900 MHz 1 W
Product Details
- Weight 272.1552 g
- Country Of Origin US
- Input Details Photoelectric
- Discrete Inputs Yes
- Max Temp Operating Conditions 70
- Application: Photoelectric Sensors Yes
- Modbus/TCP No
- Wireless Yes
- Device Type Sensor and Node
- Feature: Hazardous Area No
- EtherNet/IP No
- Point-to-Point Topology Yes
- Input/Output Discrete
- Tree Topology No
- PROFINET No
- Power Supply 2 AA Batteries
- Ships With Battery Yes
- Application: Object Counting Yes
- Power Battery
- Min Temp Operating Conditions -40
- Modbus RTU No
- Environmental Rating (IP) IP67
- Relative Humidity 90% at 50° C
- RS-232 No
- Environmental Rating (NEMA) NEMA 6P
- RS-485 No
- Wireless Radio Frequency 900 MHz
- Housing Style Integrated Battery
- Point-to-Multipoint Topology Yes
- Star Topology Yes
- 1-wire Serial Interface No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N9Q45LP on Powermatic Associates is $399.00. Order now.
About the product
Banner Engineering DX80N9Q45LP is a photo-electric sensor designed for versatile mounting options, including double-sided tape mount with brackets and M30 threaded mount. It features a durable polyester housing, a polycarbonate cover, an acrylic lens, and stainless steel hardware, ensuring robustness in various environments. This sensor operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 and NEMA 6, making it suitable for challenging conditions. It is equipped with a single digital output (DIP switch) and has a rectangular shape. The DX80N9Q45LP offers a sensing distance between 150mm and 6m and includes an adjustable sensitivity control for precise detection. It functions within the 900MHz ISM band as a 1W wireless battery-powered photo-electric sensor and node, belonging to the Q45LP series. The sensor supports Modbus communication protocol and operates with a 900MHz transmission frequency.
