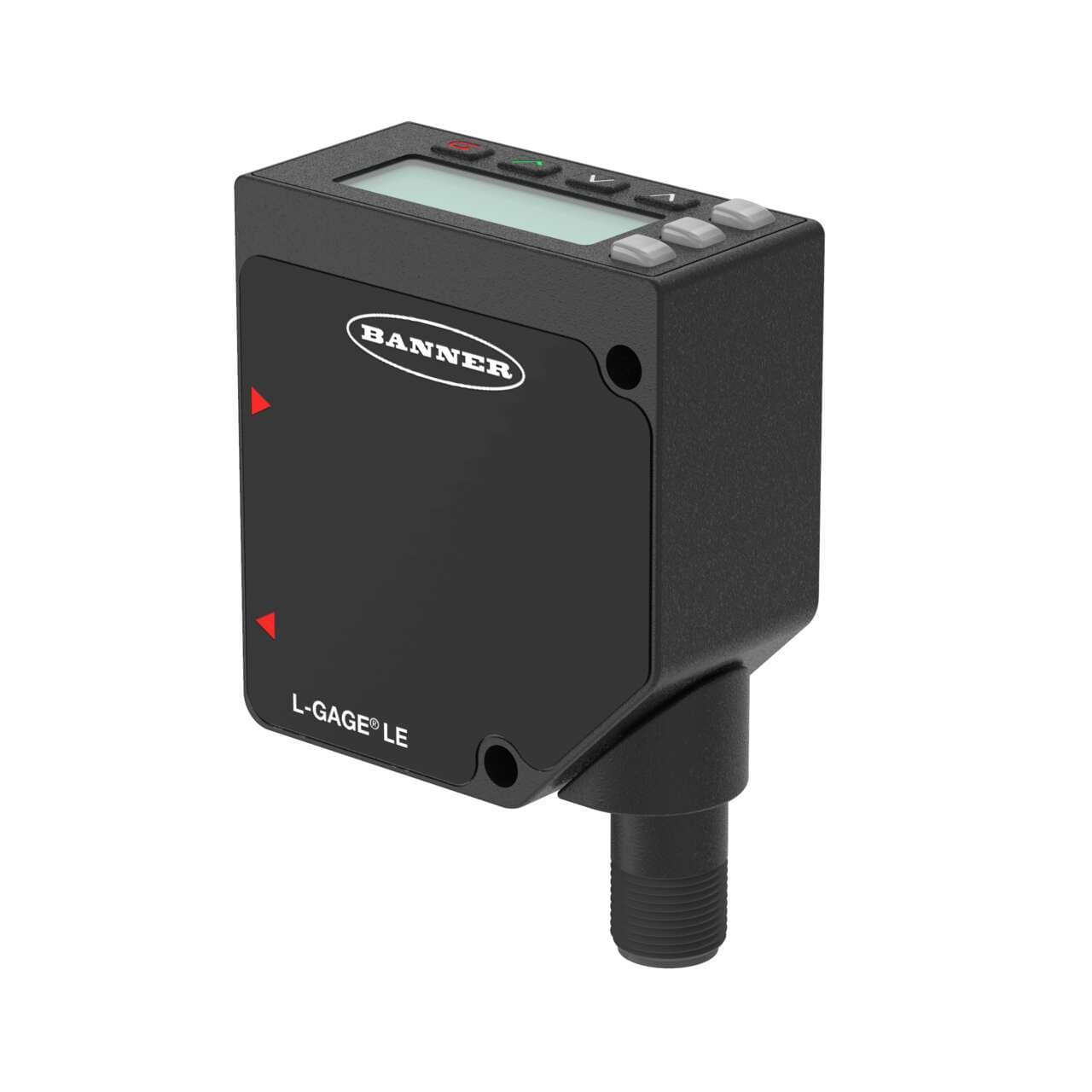

LE550KQ Banner Measurement Sensors

Product Details

• Weight
  90.7184 g
• Country Of Origin
  US
• Sensing Mode (General)
  Proximity
• Connection
  Integral QD
• Indicator
  LCD; LED(s)
• Max Discrete (Switched) Output (mA)
  100
• Warm-up Time (minutes)
  10
• Feature: Remote Teach
  Yes
• SSI
  No
• Max Measurement Range
  >500 mm - <=1000 mm
• Sensing Mode (Detailed)
  Triangulation
• Minimum Sensing Distance (mm)
  100
• Temperature Effect (mm/°C)
  +/- 0.25 mm/°C from 100 to 600 mm, +/- 0.5 mm/°C at 1000 mm
• NEMA Rating
  NEMA 6
• Discrete Output Hysteresis (mm)
  Automatically adjusted
• Primary Housing Material
  Zinc Alloy Die-Cast
• Quick Disconnect Type
  M12 (Euro)
• Number of Pins
  5
• Max Op. Relative Humidity Non-Condensing (%)
  90 at 55°C
• Alarm Output (mA)
  100
IO Link
Yes
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Max Operating Temperature (°C)
55
Max Off-state Leakage Current (µA)
PNP: <50 @ 30 V dc; Push/Pull: N/A
RS-232
No
PC Configurable
No
Laser Classification
Class 2
Delay at Power-up (ms)
3000
Discrete (Switched) Outputs
1 NPN/PNP Configurable; 1 PNP
Spot Size (@ Reference Distance)
4.9 mm x 12.1 mm @ 1 m
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Device Type
Sensor
Max Sensing Distance (mm)
1000
Adjustments
Push Button; Remote Teach
Storage Temperature (°C)
-30 to 65
Remote Teach and Laser Control Input Impedence
10 kΩ min.
Feature: Health/ Marginal Signal Output
Yes
RS-422
No
Power
DC
Analog Resolution/Discrete Repeatability
100 mm to 600 mm: < 0.5; 600 mm to 1000 mm: < 1
Output Saturation Voltage PNP Outputs
<2 V
Min Operating Temperature (°C)
-20
Laser Control
Yes
PROFINET
No
Housing Style
Rectangular
Input/Output
Discrete
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Window Material
Acrylic
Max Ambient Light (Lux)
10000
Common Ethernet Protocol
No
Sensing Beam
Visible Red Laser
Power Supply
12-30 V dc
Output Protection
Protected against continuous overload and short circuit
Minimum Response Time (ms)
2
Power/Current Consumption (exclusive of load)
70 mA @ 24 V dc
Sensing Beam Wavelength (nm)
650
IP Rating
IP67
Minimum Window Size (mm)
10
Feature: Timing (Hold/Delay)
Yes
RS-485
No
Wireless
No
1-wire Serial Interface
No
Feature: Chemical Resistant
No
Profibus
No
