LEDGA70XD5-XQ Banner Vision Accessories

LEDGA70XD5-XQ on Powermatic Associates
Banner
  • LEDGA70XD5-XQ
  • LEDGA70XD5-XQ

Part#:LEDGA70XD5-XQ

Alt. Part#:16020

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

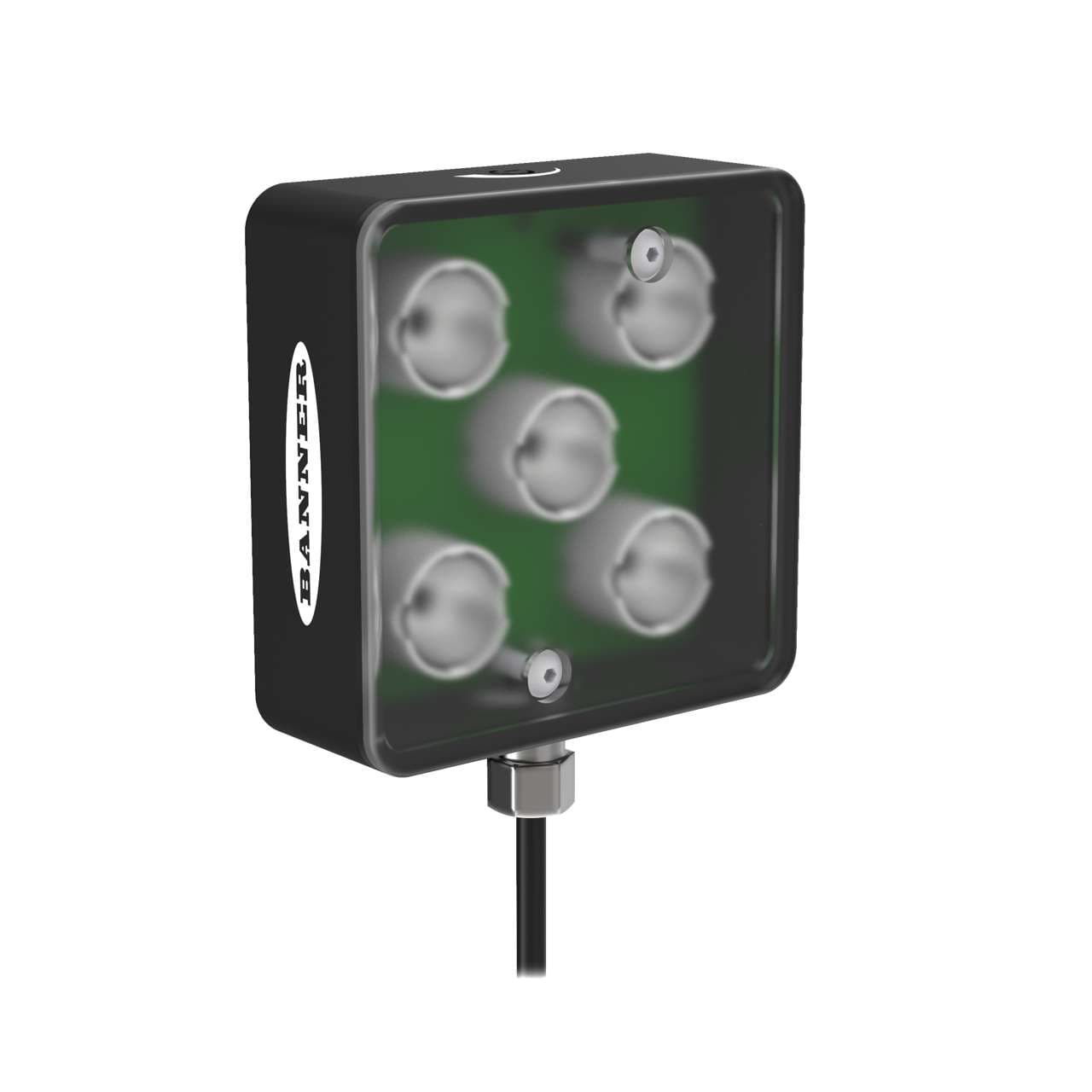

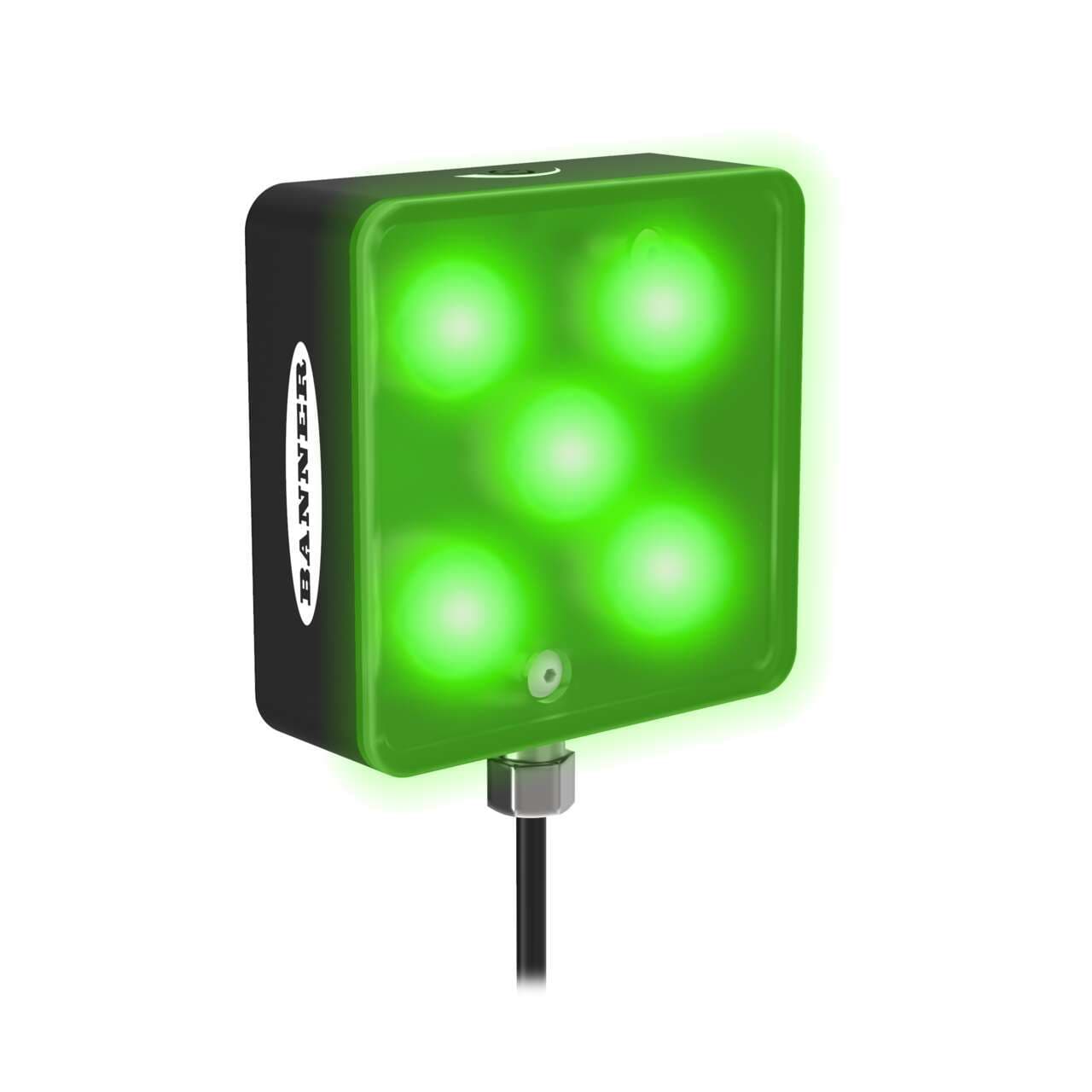

Vision Light - 70 mm Area; 5 High Intensity Green LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

Product Details

  • Weight
    272.1552 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    500
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 29.2
  • Supply Voltage
    24 V DC
  • Connection Type
    Integral QD
  • Window Material
    Diffuse Acrylic
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Color Technology
    Standard LED
  • Device Type
    Area Light
  • Color
    Green
  • Primary Housing Material
    Low-Carbon Steel
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDGA70XD5-XQ on Powermatic Associates is $734.00. Order now.

About the product

Banner Engineering LEDGA70XD5-XQ is an illumination unit designed for area illumination with a high-intensity visible green light. It features a square shape with dimensions of 70x70mm and is constructed from low-carbon steel housing with a diffused acrylic window. This unit is pre-wired with a 6" / 150mm pigtail that terminates with a 5-pin Euro-style M12 connector. It operates on a supply voltage of 24Vdc and offers a degree of protection rated at IP50.

LEDGA70XD5-XQ Related Documents

153956.pdf
