LEDRRV62X62M Banner Vision Accessories

Name: LEDRRV62X62M
Brand: Banner
Price: 352 USD
Availability: BackOrder

Part#:LEDRRV62X62M

Alt. Part#:97378

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

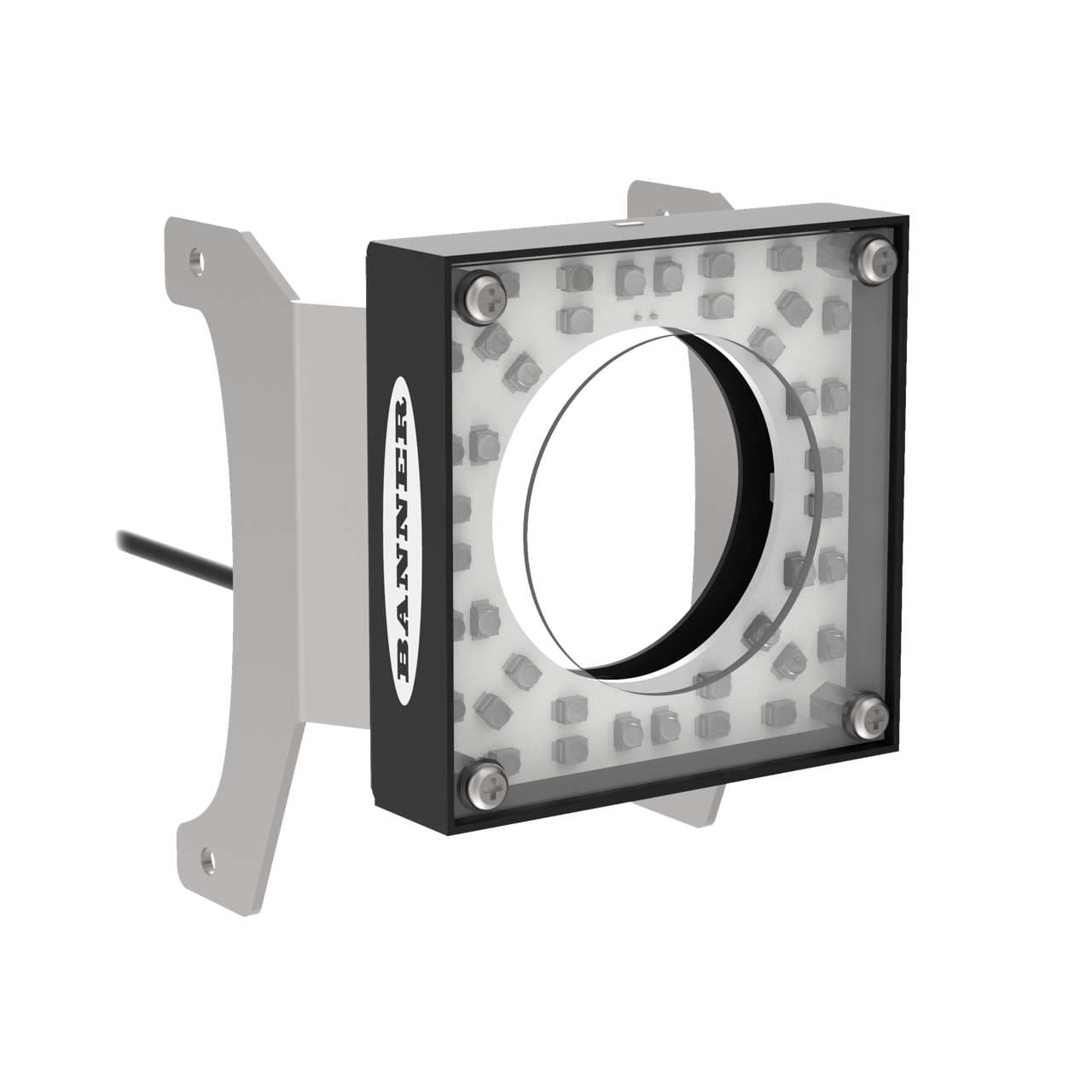

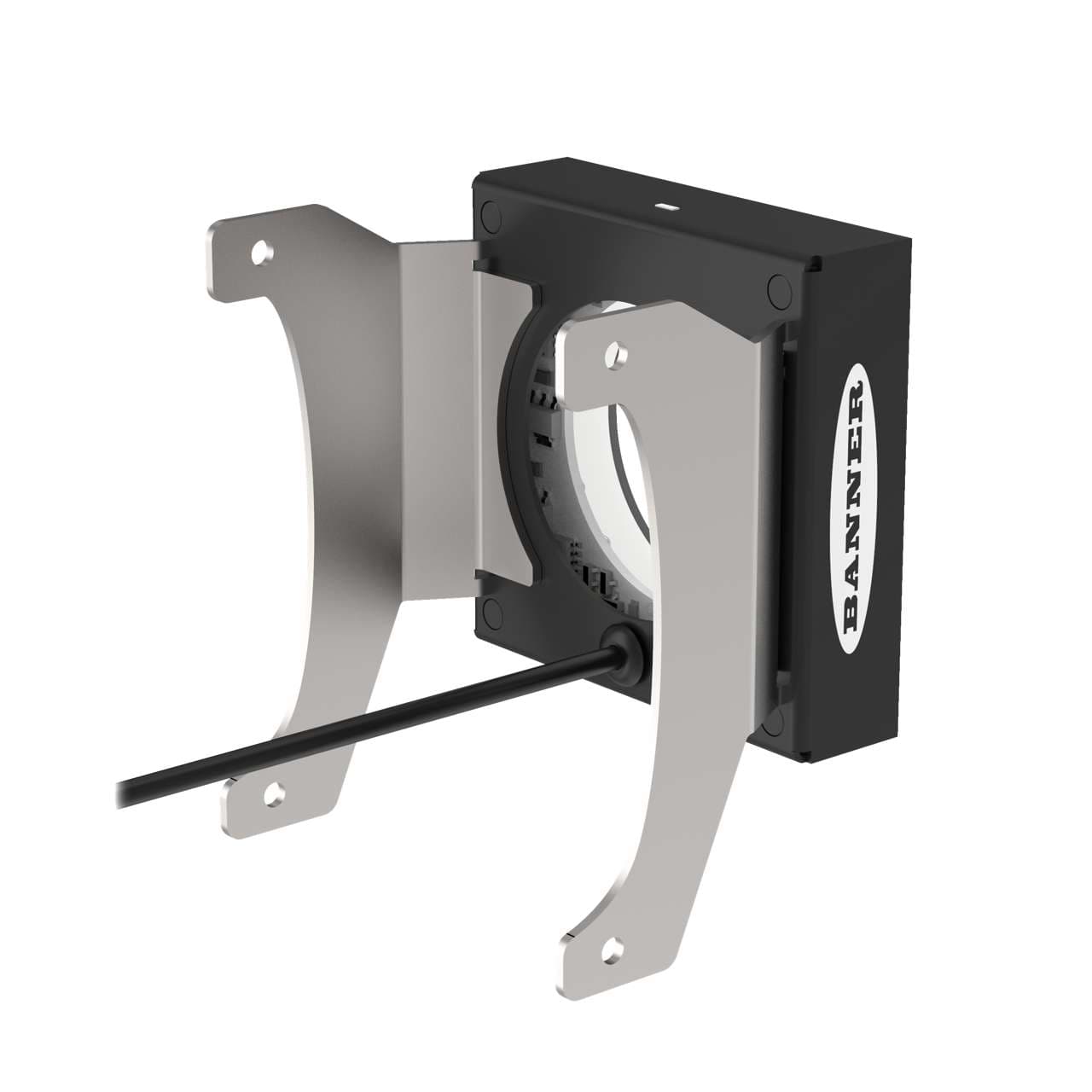

VE Series 62 x 62 mm Ring Light; Visible Red LED; 24 V dc; 0.3 m (1 ft) Cable with 3-pin male Connector; Connects to VE Smart Camera

Product Details

Weight
136.0776 g
Country Of Origin
MX
Color
Red
Housing Style
Rectangular
Window Material
Acrylic
Connection Type
Pigtail QD
Color Technology
Standard LED
Number of Input Pins/Conductors
3
Power
DC
Max Current Color (mA)
130
QD Type/Cable Length
300 mm; M8 (Pico)
Max Op. Temperature (°C)
50
Primary Housing Material
Aluminum
Physical Dimensions (LxWxH or DxH mm)
66.7 x 66.7 x 104.1
Device Type
Ring Light
Supply Voltage
24 V dc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDRRV62X62M on Powermatic Associates is $352.00. Order now.

About the product

Banner Engineering LEDRRV62X62M is an illumination unit designed for ring illumination light applications. It features dimensions of 62x62mm and produces visible red light. The unit has a rectangular shape with a ring passage, constructed with an aluminium housing and an acrylic window for durability. It comes pre-wired with a 12" / 300mm pigtail that is terminated with a 3-pin Pico-style M8 connector, facilitating easy and secure connections. The LEDRRV62X62M operates on a 24Vdc supply voltage.
