Powermatic Associates Logo

LEDUV365LA580XG6-XQ Banner Vision Accessories

LEDUV365LA580XG6-XQ on Powermatic Associates
Banner
  • LEDUV365LA580XG6-XQ
  • LEDUV365LA580XG6-XQ

Part#:LEDUV365LA580XG6-XQ

Alt. Part#:19914

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

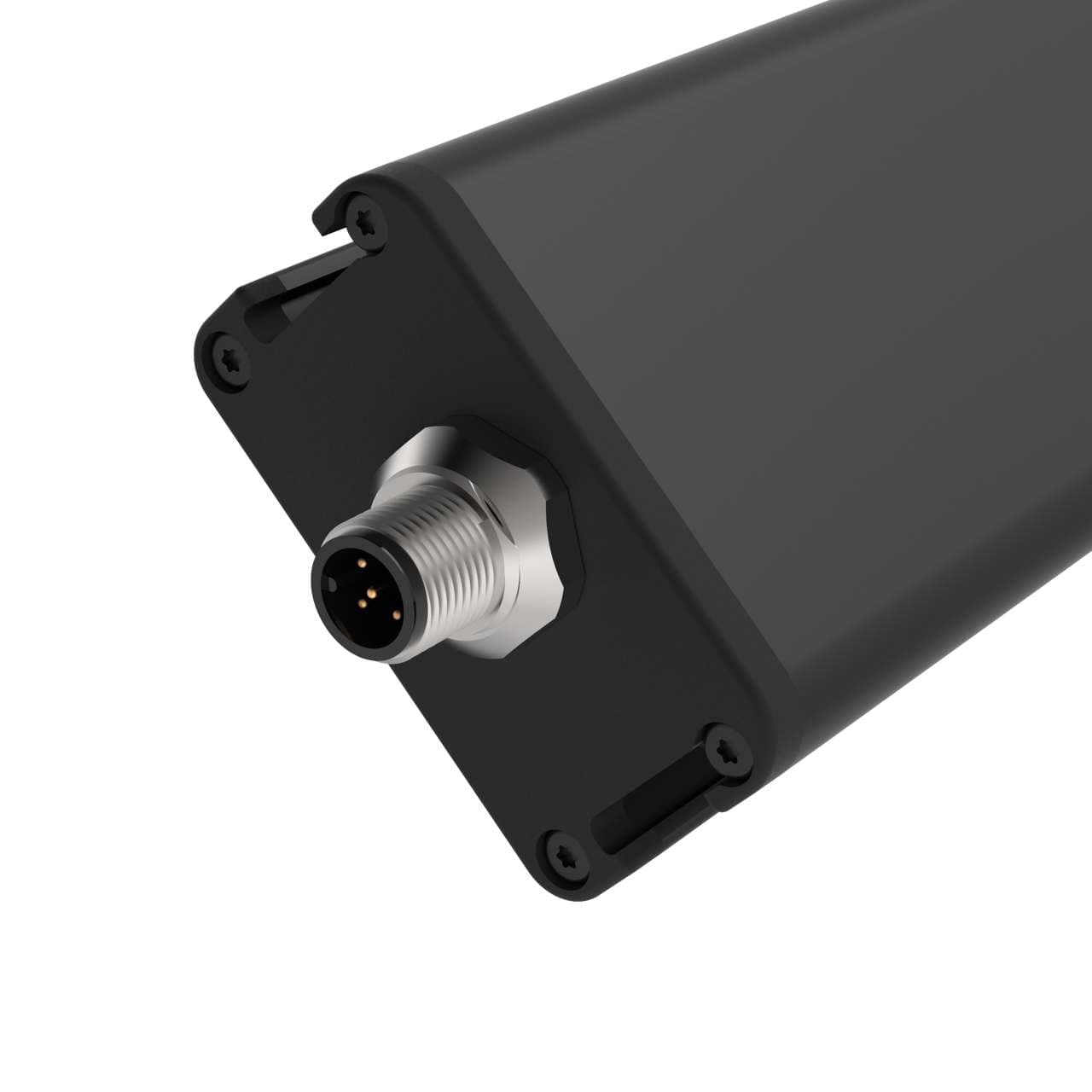

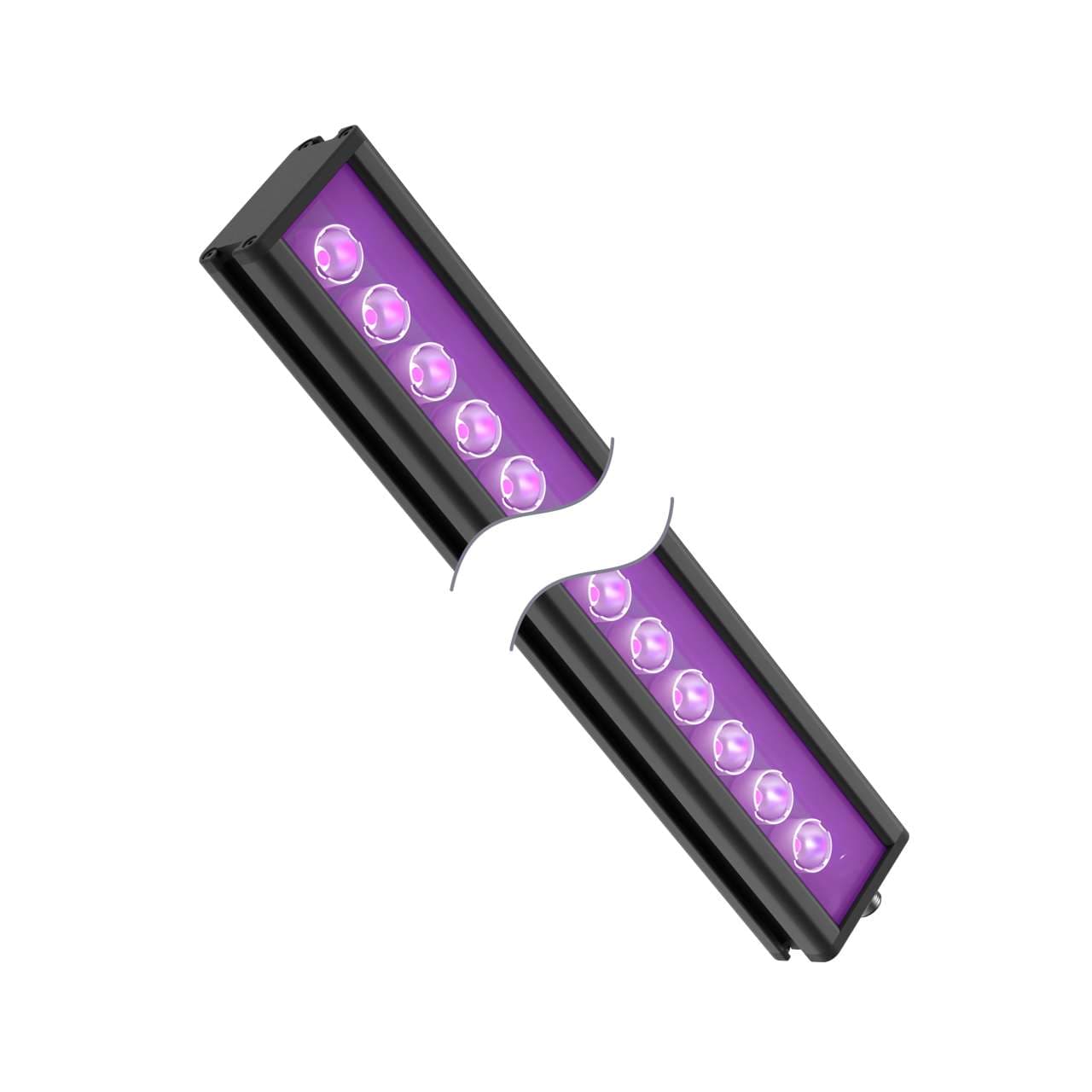

Vision Light: 580 mm Linear Array - IP50; 24 High Intensity 365 nm UV LEDs - 24 V dc; Clear Glass Window; 5-pin M12 QD

Product Details

  • Weight
    1338.0964 g
  • Country Of Origin
    US
  • Connection Type
    Integral QD
  • Feature: Quick Disconnect
    Yes
  • Power
    DC
  • Max Current Color (mA)
    2000
  • Primary Housing Material
    Anodized Aluminum
  • Supply Voltage
    24 V DC
  • Color
    Ultraviolet
  • Device Type
    Bar Light
  • Max Op. Temperature (°C)
    50
  • Window Material
    Glass
  • Number of Input Pins/Conductors
    5
  • Physical Dimensions (LxWxH or DxH mm)
    623.6 x 59.4 x 32.6
  • Housing Style
    Linear Strip
  • Color Technology
    Standard LED
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Lens Focusing Angle (°)/Field of View
    15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDUV365LA580XG6-XQ on Powermatic Associates is $4,890.00. Order now.

About the product

Banner Engineering LEDUV365LA580XG6-XQ is an illumination unit designed as a linear array illumination backlight. It features a high-intensity design suitable for applications requiring ultraviolet (UV) light. The unit has a rectangular shape with dimensions of 580mm (22.8 inches or approximately 2 feet) in array length. It is constructed with a black anodized aluminum housing and a glass window for durability. This model is pre-equipped with a 5-pin Euro-style M12 connector for easy connection. It operates on a supply voltage of 24Vdc and emits light at a wavelength of 365 nm. The LEDUV365LA580XG6-XQ offers a degree of protection rated at IP50.
