Part#:LEDUV395LA580XD6-XQ

Alt. Part#:19929

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

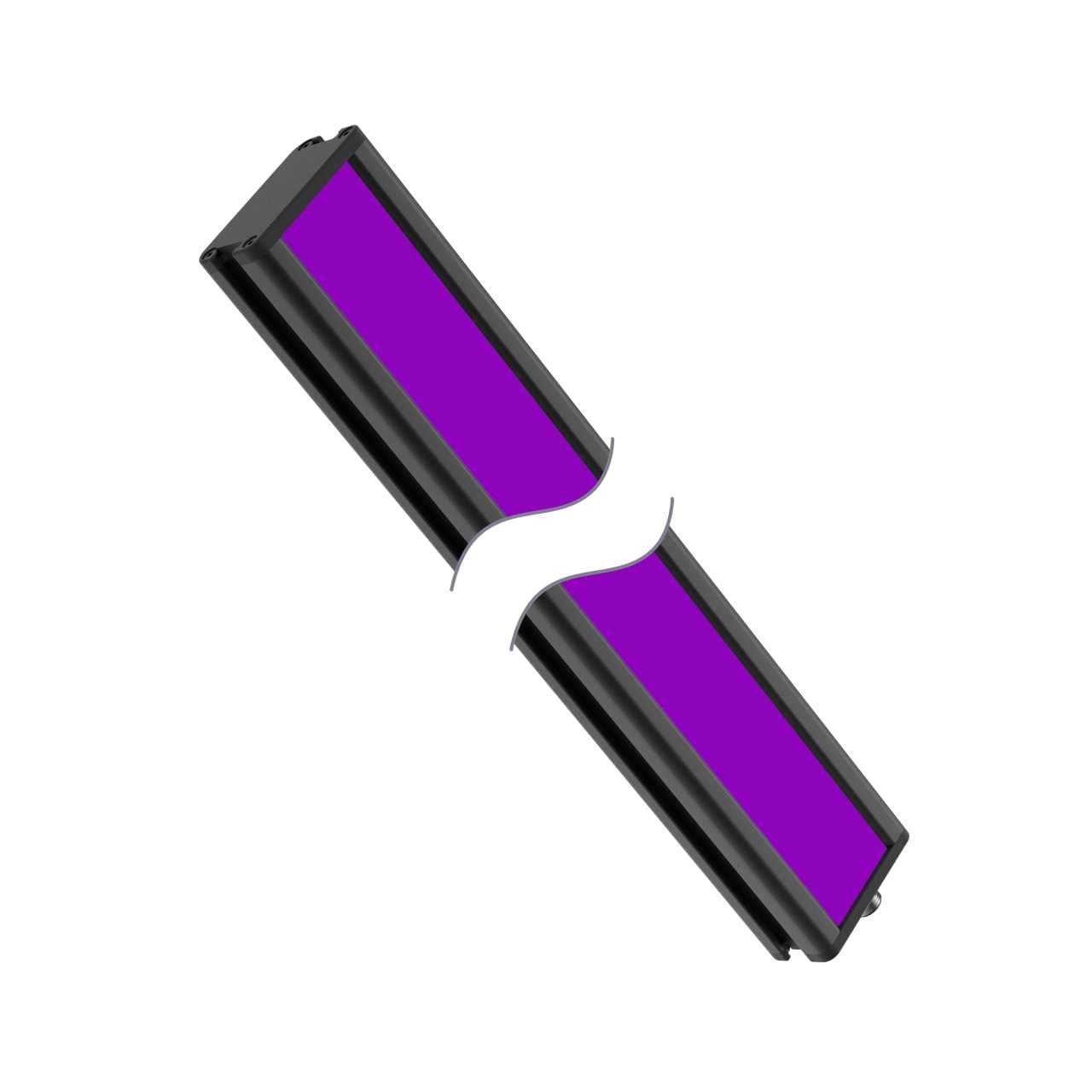

Vision Light: 580 mm Linear Array - IP50; 24 High Intensity 395 nm UV LEDs - 24 V dc; Diffuse Plastic Window; 5-pin M12 QD

Product Details

  • Weight
    1338.0964 g
  • Country Of Origin
    MX
  • Color
    Ultraviolet
  • Physical Dimensions (LxWxH or DxH mm)
    623.6 x 59.4 x 32.6
  • Window Material
    Diffuse Acrylic
  • Number of Input Pins/Conductors
    5
  • Color Technology
    Standard LED
  • Primary Housing Material
    Anodized Aluminum
  • Power
    DC
  • Max Op. Temperature (°C)
    50
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Lens Focusing Angle (°)/Field of View
    5
  • Connection Type
    Integral QD
  • Supply Voltage
    24 V DC
  • Housing Style
    Linear Strip
  • Device Type
    Bar Light
  • Max Current Color (mA)
    2000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDUV395LA580XD6-XQ on Powermatic Associates is $3,472.00. Order now.

About the product

Banner Engineering LEDUV395LA580XD6-XQ is an illumination unit designed for linear array illumination backlight applications. This high-intensity unit features a rectangular shape with dimensions of 580mm / 22.8" / 2ft array length, and it emits light in the ultraviolet (UV) spectrum with a wavelength of 395 nm. The housing is made from black anodized aluminum and includes a diffused acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity and operates on a 24Vdc supply voltage. The LEDUV395LA580XD6-XQ offers a degree of protection rated at IP50.

LEDUV395LA580XD6-XQ Related Documents

151466.pdf
