LEDUV395R70XD5-PQ Banner Vision Accessories

LEDUV395R70XD5-PQ on Powermatic Associates
Banner

Part#:LEDUV395R70XD5-PQ

Alt. Part#:19879

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

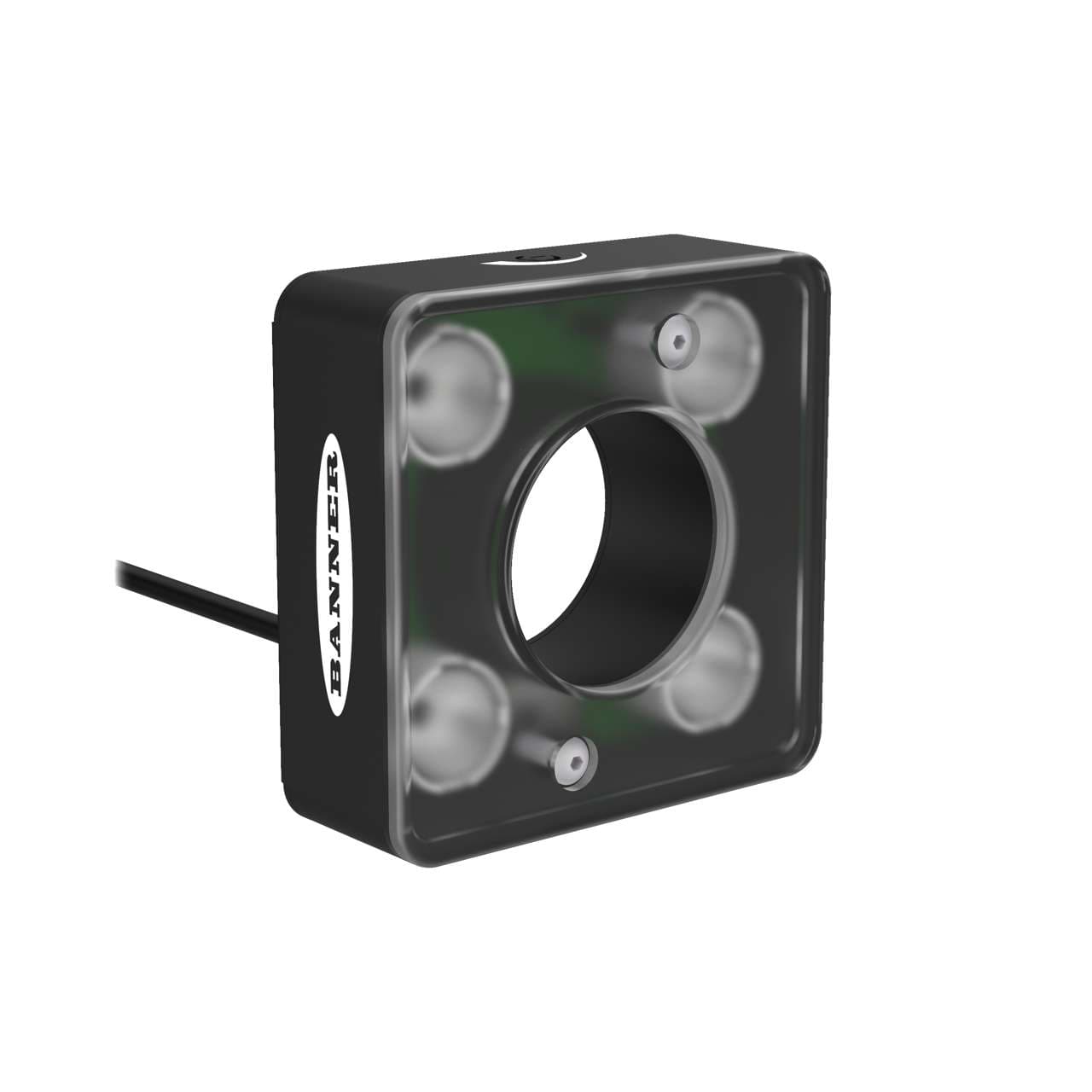

Vision Light: 70 mm Ring with Potentiometer; 4 High Intensity 395 nm UV LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

Product Details

  • Weight
    249.4756 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Color Technology
    Standard LED
  • Device Type
    Ring Light
  • Housing Style
    Rectangular
  • Power
    DC
  • Supply Voltage
    24 V DC
  • Window Material
    Diffuse Acrylic
  • Max Current Color (mA)
    350
  • Intensity Adjustment
    Potentiometer
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 63.0
  • Connection Type
    Integral QD
  • Max Op. Temperature (°C)
    50
  • Color
    Ultraviolet
  • Number of Input Pins/Conductors
    5
  • Primary Housing Material
    Anodized Aluminum
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDUV395R70XD5-PQ on Powermatic Associates is $828.00. Order now.

About the product

Banner Engineering LEDUV395R70XD5-PQ is an illumination unit designed for ring illumination light applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer, and delivers high-intensity lighting. This unit has dimensions of 70x70mm and emits ultraviolet (UV) light with a wavelength of 395 nm. It is designed in a rectangular shape with a ring passage, suitable for a 38.4mm / 3" ring. The housing is made from black anodized aluminum with a frosted acrylic window. For connectivity, it is pre-equipped with a 5-pin Euro-style M12 connector and operates on a 24Vdc supply voltage.
